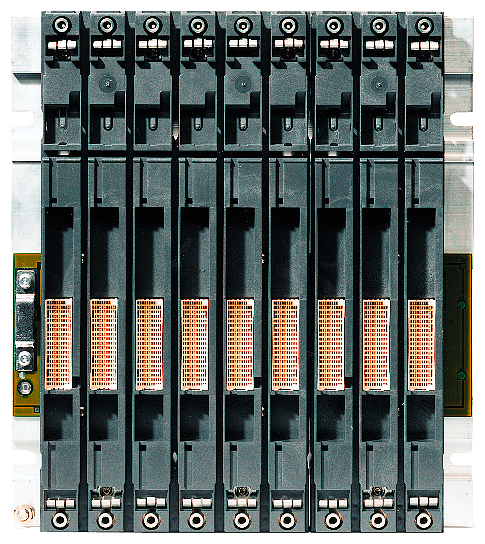

SIMATIC S7-400 ER2 With 9 slots, aluminum For configuring S7-400 expansion units
SKU: 6ES7403-1JA11-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC S7-400, extended rack ER2 aluminum, has 9 slots for signal modules, and two redundant PS can be inserted in.
General information:
Product type designation: ER2.
Hardware configuration:
Rack:
Communication bus: No.
P bus: Yes.
Slots:
Number of slots: 9.
Buy currently uses Select Automation shop pricing and checkout.
Standards, approvals, certificates:
CE mark Yes.
UKCA mark Yes.
UL approval Yes.
FM approval Yes.
RCM (formerly C-TICK) Yes.
KC approval Yes.
EAC (formerly Gost-R) Yes.
CCC Yes.
Ambient conditions:
Ambient temperature during operation:
min.: 0 °C.
max.: 60 °C.
Ambient temperature during storage/transportation:
min.: 0 °C.
max.: 70 °C.
Mechanics/material:
rack profile material aluminium.
Dimensions:
Width: 257.5 mm.
Height: 290 mm.
Depth: 27.5 mm.
Weights:
Weight, approx.: 1 250 g.
