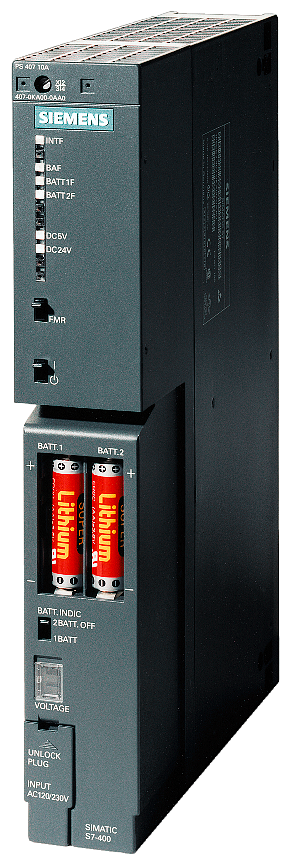

SIMATIC S7-400 PS 407 4A
SKU: 6ES7407-0DA02-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC S7-400, Power supply PS407: 4 A, wide range, UC 120/230V, and 5 V DC/4 A.
Supply voltage:
Rated value (DC):
120 V DC: Yes.
230 V DC: Yes.
Rated value (AC):
120 V AC Yes.
230 V AC Yes.
Line frequency:
Rated value 50 Hz: Yes.
Rated value 60 Hz: Yes.
Permissible range, lower limit: 47 Hz.
Permissible range, upper limit: 63 Hz.
Mains buffering:
Mains/voltage failure stored energy time: 20 ms.
Mains buffering according to NAMUR recommendation: Yes.
Input current:
Rated value at 120 V DC: 350 mA.
Rated value at 230 V DC: 3.2 A.
Rated value at 120 V AC: 2.5 A.
Rated value at 230 V AC: 0.22 A.
Inrush current, max.: 8.5 A; Full width at half maximum 5 ms.
Leakage current, max.: 5 mA.
output voltage / header:
Type of output voltage: DC.
Rated value (DC):
5 V DC: Yes.
24 V DC: Yes.
Output current:
for backplane bus (5 V DC), max.: 4 A; no base load required.
for backplane bus (24 V DC), max.: 0.5 A; idling-proof.
Short-circuit protection: Yes.
Buy currently uses Select Automation shop pricing and checkout.
Power:
Active power input, typ.: 52 W.
Power loss:
Power loss, typ.: 20 W.
Battery:
Backup battery:
Backup battery (optional): Yes; 2x lithium AA; 3.6 V / 2.2 Ah.
Hardware configuration:
Slots:
required slots: 1.
Potential separation:
primary/secondary: Yes.
Isolation:
Overvoltage category: II.
EMC:
Compliance with line harmonic distortion limits.
Compliance with line harmonic distortion acc. to IEC 61000-3-2, IEC 61000-3-3: Yes.
Degree and class of protection:
Equipment protection class: I, with protective conductor.
Standards, approvals, certificates:
FM approval: Yes; Ta: 0 °C to 70 °C T4.
BIS: Yes.
Ambient conditions:
Ambient temperature during operation:
min.: 0 °C.
max.: 60 °C.
connection method:
Design of electrical connection: 3x 1.5 mm², solid or stranded wire with end sleeve, external diameter 3 mm to 9 mm.
Dimensions:
Width: 25 mm.
Height: 290 mm.
Depth: 217 mm.
Weights:
Weight, approx.: 760 g.
