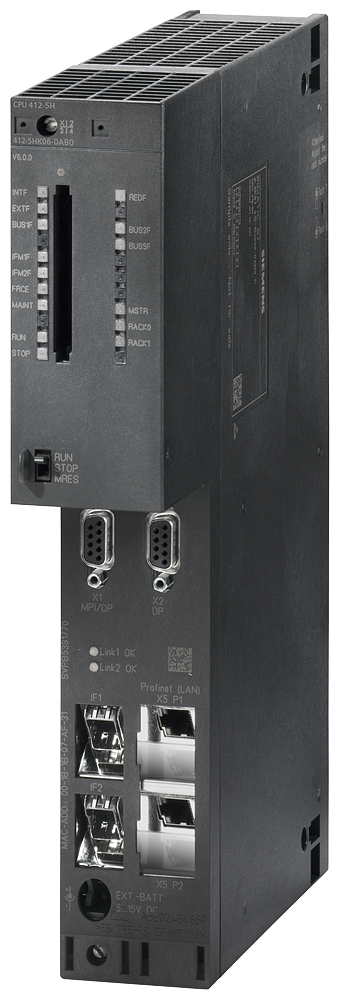

SIMATIC S7-400 CPU 412-5H PN/DP 1 MB
SKU: 6ES7412-5HK06-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC S7-400H with CPU 412-5H.
Central processing unit for the S7-400H and S7-400F/FH.
5 interfaces: 1x MPI/DP, 1x DP, 1x PN, and 2x sync modules.
Memory: 1 MB (512 KB data, 512 KB application).
General information:
Product type designation: CPU 412-5H PN/DP.
HW functional status: 1.
Firmware version: V6.0.
Product function:
Isochronous mode: No.
Engineering with:
Programming package: As of STEP 7 V5.5 SP2 with HF1.
Supply voltage:
Rated value (DC): Power supply via system power supply.
Input current:
from backplane bus 5 V DC, typ.: 1.6 A.
from backplane bus 5 V DC, max.: 1.9 A.
from backplane bus 24 V DC, max.: 150 mA; 150 mA per DP interface.
from interface 5 V DC, max.: 90 mA; At each DP interface.
Power loss:
Power loss, typ.: 7.5 W.
Memory:
Type of memory: RAM.
Work memory:
integrated: 1 Mbyte.
integrated (for program): 512 kbyte.
integrated (for data): 512 kbyte.
expandable: No.
Load memory:
expandable FEPROM: Yes; with Memory Card (FLASH).
expandable FEPROM, max.: 64 Mbyte.
integrated RAM, max.: 512 kbyte.
expandable RAM: Yes.
expandable RAM, max.: 64 Mbyte.
Backup:
present: Yes.
with battery: Yes; all data.
without battery: No.
Buy currently uses Select Automation shop pricing and checkout.
Battery:
Backup battery:
Backup current, typ.: 180 µA; Valid up to 40°C.
Backup current, max.: 1 000 µA.
Backup time, max.: Dealt with in the module data manual with the secondary conditions and the factors of influence.
Feeding of external backup voltage to CPU: 5 V DC to 15 V DC.
Address area:
I/O address area:
Inputs: 8 kbyte.
Outputs: 8 kbyte.
Process image:
Inputs, adjustable: 8 kbyte.
Outputs, adjustable: 8 kbyte.
Inputs, default: 256 byte.
Outputs, default: 256 byte.
consistent data, max.: 244 byte.
Access to consistent data in process image: Yes.
Subprocess images:
Number of subprocess images, max.: 15.
Digital channels:
Inputs: 65 536.
of which central: 65 536.
Outputs: 65 536.
of which central: 65 536.
Analog channels:
Inputs: 4 096.
of which central: 4 096.
Outputs: 4 096.
of which central: 4 096.
Hardware configuration:
Number of expansion units, max.: 21.
Connectable: OPs 47.
Mult computing: No.
Interface modules:
Number of connectable IMs (total), max.: 6.
Number of connectable IM 460s, max.: 6.
Number of connectable IM 463s, max.: 4; Single mode only.
Number of DP masters:
Integrated: 2.
via CP: 10; CP 443-5 Extended.
Mixed mode IM + CP permitted: No.
via interface module: 0.
Number of IO Controllers:
Integrated: 1.
via CP: 0.
Number of operable FMs and CPs (recommended):
FM: See manual Automation System S7-400H fault-tolerant systems. Limited by number of slots and number of connections.
CP, PtP: See manual Automation System S7-400H fault-tolerant systems. Limited by number of slots and number of connections.
PROFIBUS and Ethernet CPs: 14; Of which max. 10 CP as DP master.
Slots:
required slots: 2.
Dimensions:
Width: 50 mm.
Height: 290 mm.
Depth: 219 mm.
Weights:
Weight, approx.: 995 g.
