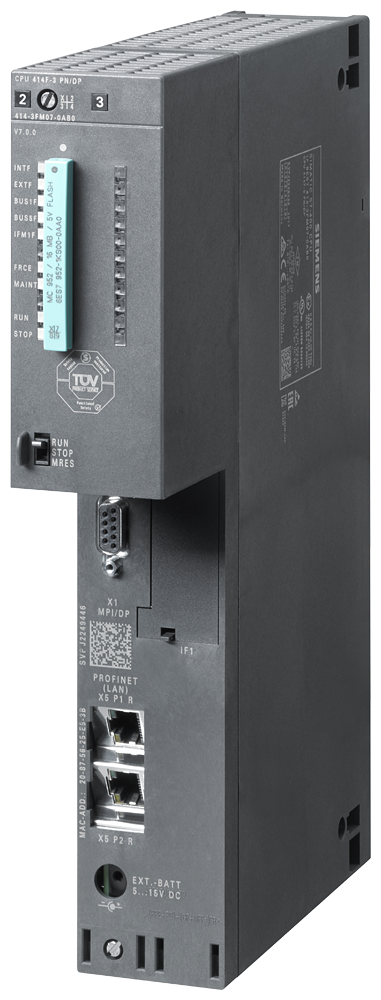

      SIMATIC S7-400 CPU 414F-3 PN/DP 4 MB

      SKU: 6ES7414-3FM07-0AB0

      Out of stock

      Availability: Out of Stock

      Short Description
      Description: A central processing unit intended for high-performance industrial automation applications is the SIMATIC S7-400 CPU414F-3 PN/DP. It is a member of the durable and dependable SIMATIC S7-400 group. Features: High Performance: With a huge memory capacity and fast processing speed, this device is ideal for complicated automation tasks. Flexible Communication: Plug-in possibilities, Ethernet/PROFINET, and MPI/DP interfaces are just a few of the many interfaces available for flexible communication. Sturdy Design: Made to withstand high temperatures and high levels of ingress protection in industrial settings. Advanced Diagnostics: Full diagnostic features for simple maintenance and troubleshooting. Expandable Memory: Allows for greater storage capacity through memory expansion using memory cards. Battery Backup: Provides data preservation in the event of a power outage. Applications needing great performance and dependability in industrial automation are perfect for this CPU.
      6ES7414-3FM07-0AB0
      Alternative image 1
      Specifications: Product Type: Central Processing Unit (CPU). Work Memory: 4 MB total. Interfaces: 1st Interface: MPI/DP 12 Mbit/s (X1). 2nd Interface: Ethernet/PROFINET (X5). 3rd Interface: IF 964-DP plug-in (IF1). Power Supply: Via system power supply. Input Current: From backplane bus 5 V DC, typical: 1.3 A. From backplane bus 5 V DC, max: 1.6 A. From backplane bus 24 V DC, max: 300 mA (150 mA per DP interface). From interface 5 V DC, max: 90 mA (at each DP interface). Memory: Type: RAM. Integrated Work Memory: 4 MB (2 MB for program, 2 MB for data). Expandable with Memory Card (FLASH): Up to 64 MB. Integrated RAM: 512 Kb. Timers and Counters: S7 Counters: 2,048. S7 Times: 2,048. IEC Timers: Yes, adjustable. Temperature Range: -40°C to +70°C. Dimensions: Height: 290 mm. Width: 219 mm. Depth: 60 mm. Weight: 1.088 kg. Certifications: Compliance with RoHS, WEEE, and REACH regulations.
