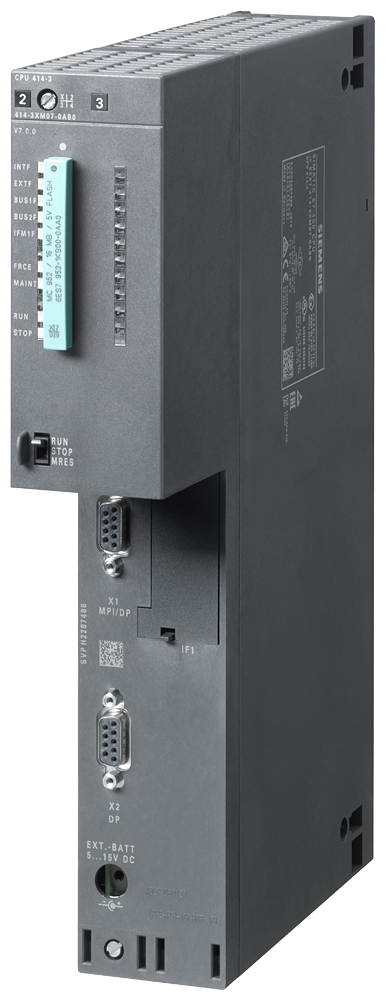

SIMATIC S7-400, CPU 414-3, 4 MB
SKU: 6ES7414-3XM07-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC S7-400, CPU 414-3 Central processing unit featuring:
Work memory: 4 MB (2 MB code, 2 MB data).
1st interface: MPI/DP 12 Mbit/s.
Second interface: PROFIBUS DP.
Third interface plug-in IFM module.
General information:
Product type designation: CPU 414-3.
HW functional status: 01.
Firmware version: V7.0.
Product function:
Isochronous mode: Yes; For PROFIBUS only.
Engineering with:
Programming package: STEP 7 V5.4 or higher with HSP 261.
Supply voltage:
Rated value (DC): Power supply via system power supply.
Input current:
from backplane bus 5 V DC, typ.: 1.1 A.
from backplane bus 5 V DC, max.: 1.3 A.
from backplane bus 24 V DC, max.: 450 mA; 150 mA per DP interface.
from interface 5 V DC, max.: 90 mA; At each DP interface.
Power loss:
Power loss, typ.: 5.5 W.
Power loss, max.: 6.5 W.
Memory:
Type of memory: RAM.
Work memory:
integrated: 4 Mbyte.
integrated (for program): 2 Mbyte.
integrated (for data): 2 Mbyte.
expandable: No.
Load memory:
expandable FEPROM: Yes; with Memory Card (FLASH).
expandable FEPROM, max.: 64 Mbyte.
integrated RAM, max.: 512 kbyte.
expandable RAM: Yes; with Memory Card (RAM).
expandable RAM, max.: 64 Mbyte.
Backup:
present: Yes.
with battery: Yes; all data.
without battery: No.
Buy currently uses Select Automation shop pricing and checkout.
Battery:
Backup battery:
Backup current, typ.: 180 µA.
Backup current, max.: 850 µA.
Backup time, max.: Dealt with in the module data manual with the secondary conditions and the factors of influence.
Feeding of external backup voltage to CPU: 5 V DC to 15 V DC.
Address area:
I/O address area:
Inputs: 8 kbyte.
Outputs: 8 kbyte.
Process image:
Inputs, adjustable: 8 kbyte.
Outputs, adjustable: 8 kbyte.
Inputs, default: 256 byte.
Outputs, default: 256 byte.
consistent data, max.: 244 byte.
Access to consistent data in process image: Yes.
Subprocess images:
Number of subprocess images, max.: 15.
Digital channels:
Inputs: 65 536.
of which central: 65 536.
Outputs: 65 536.
of which central: 65 536.
Analog channels:
Inputs: 4 096.
of which central: 4 096.
Outputs: 4 096.
of which central: 4 096.
Hardware configuration:
Number of expansion units, max.: 21.
Connectable: OPs 63.
Mult computing: Yes; 4 CPUs max. (with UR1 or UR2).
Interface modules:
Number of connectable IMs (total), max.: 6.
Number of connectable IM 460s, max.: 6.
Number of connectable IM 463s, max.: 4; IM 463-2.
Number of DP masters:
Integrated: 2.
via CP: 10; CP 443-5 Extended.
via IM 467: 4
Mixed mode IM + CP permitted: No; IM 467 cannot be used jointly with CP 443-5 Ext. or CP 443-1 in PROFINET IO mode.
via interface module: 1.
Number of pluggable S5 modules (via adapter capsule in central device), max.: 6.
Number of IO Controllers:
Integrated: 0.
via CP: 4; Max. 4 in the central controller; no mixed operation of different CP 443-1 types in PROFINET IO mode.
Number of operable FMs and CPs (recommended):
FM: Limited by number of slots and number of connections.
CP, PtP: CP 440: Limited by number of slots; CP 441: limited by number of connections.
PROFIBUS and Ethernet CPs: 14; In total max. 10 CPs as DP master and PROFINET controller, of which up to 10 IMs or CPs as DP master and up to 4 CPs as PROFINET controller.
Slots:
required slots: 2.
Ambient conditions:
Ambient temperature during operation:
min.: 0 °C.
max.: 60 °C.
Dimensions:
Width: 50 mm.
Height: 290 mm.
Depth: 219 mm.
Weights:
Weight, approx.: 900 g.
