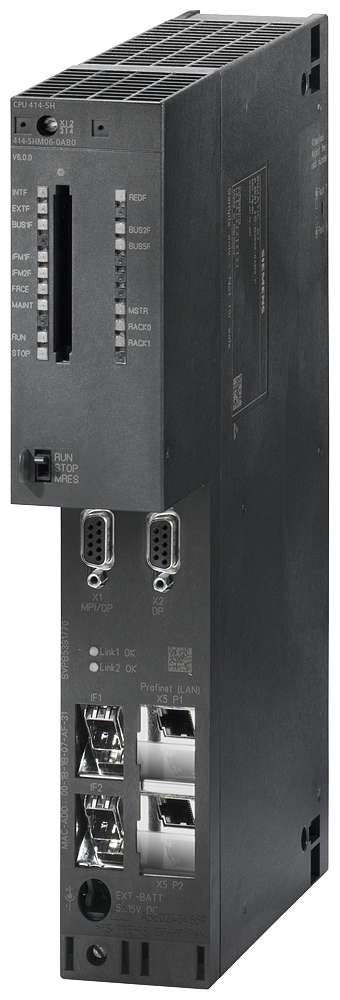

SIMATIC S7-400 CPU 414-5H PN/DP 4 MB
SKU: 6ES7414-5HM06-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC S7-400H, CPU 414-5H is the central processing unit for S7-400H and S7-400F/FH.
There are 5 interfaces: 1x MPI/DP, 1x DP, 1x PN, and 2 for sync modules.
The RAM is 4 MB (2 MB data/2 MB program).
Buy currently uses Select Automation shop pricing and checkout.
General information:
Product type designation: CPU 414-5H PN/DP.
HW functional status: 1.
Firmware version: V6.0.
Product function:
Isochronous mode: No.
Engineering with:
Programming package: As of STEP 7 V5.5 SP2 with HF1.
CiR - Configuration in RUN:
CiR synchronization time, basic load: 100 ms.
CiR synchronization time, time per I/O byte: 0 µs.
Supply voltage:
Rated value (DC): Power supply via system power supply.
Input current:
from backplane bus 5 V DC, typ.: 1.6 A.
from backplane bus 5 V DC, max.: 1.9 A.
from backplane bus 24 V DC, max.: 150 mA; 150 mA per DP interface.
from interface 5 V DC, max.: 90 mA; At each DP interface.
Power loss:
Power loss, typ.: 7.5 W.
Memory:
Type of memory: other.
Work memory:
integrated: 4 Mbyte.
integrated (for program): 2 Mbyte.
integrated (for data): 2 Mbyte.
expandable: No.
Load memory:
expandable FEPROM: Yes; with Memory Card (FLASH).
expandable FEPROM, max.: 64 Mbyte.
integrated RAM, max.: 512 kbyte.
expandable RAM: Yes.
expandable RAM, max.: 64 Mbyte.
Backup:
present: Yes.
with battery: Yes; all data.
without battery: No.
Battery:
Backup battery:
Backup current, typ.: 180 µA; Valid up to 40°C.
Backup current, max.: 1 000 µA.
Backup time, max.: Dealt with in the module data manual with the secondary conditions and the factors of influence.
Feeding of external backup voltage to CPU: 5 V DC to 15 V DC.
Dimensions:
Width: 50 mm.
Height: 290 mm.
Depth: 219 mm.
Weights:
Weight, approx.: 995 g.
