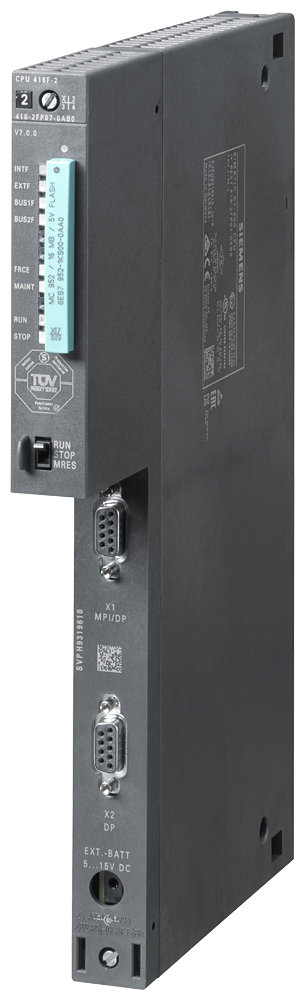

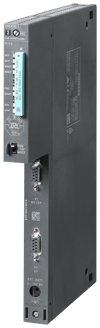

SIMATIC S7-400 CPU 416F-2 8 MB
SKU: 6ES7416-2FP07-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
High-performance central processing units like the Siemens SIMATIC S7-400 and CPU 416F-2 are made for demanding automation applications.
It belongs to the SIMATIC S7-400 family, which is renowned for operating with stability and dependability in industrial settings.
Applications with a lot of processing power and communication capabilities are best suited for this CPU.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Work Memory: 8 MB (4 MB code, 4 MB data).
Interfaces:
1st Interface: MPI/DP 12 Mbit/s.
2nd Interface: PROFIBUS DP.
Supply Voltage: 24 V DC.
Input Current:
From backplane bus 5 V DC: 0.9 A (typ.), 1.1 A (max.).
From backplane bus 24 V DC: 150 mA per DP interface.
From interface 5 V DC: 90 mA at each DP interface.
Power Loss:
Typical: 4.5 W.
Maximum: 5.5 W.
Memory Type: RAM.
Integrated Work Memory: 8 MB (4 MB for program, 4 MB for data).
Expandable Load Memory: Up to 64 MB with Memory Card.
Backup: Yes, with battery.
CPU Processing Times:
Bit operations: 12.5 ns.
Word operations: 12.5 ns.
Fixed point arithmetic: 12.5 ns.
Floating point arithmetic: 25 ns.
CPU Blocks:
DB: Max. 2048, Size: Max. 64 kB.
FB: Max. 2048, Size: Max. 64 kB.
FC: Max. 2048, Size: Max. 64 kB.
OB: Various types with specific limits.
Counters and Timers:
S7 Counters: Max. 2048.
IEC Counters: Unlimited (limited by RAM capacity).
S7 Timers: Max. 2048.
IEC Timers: Unlimited (limited by RAM capacity).
Retentive Data Area: Yes, with backup.
