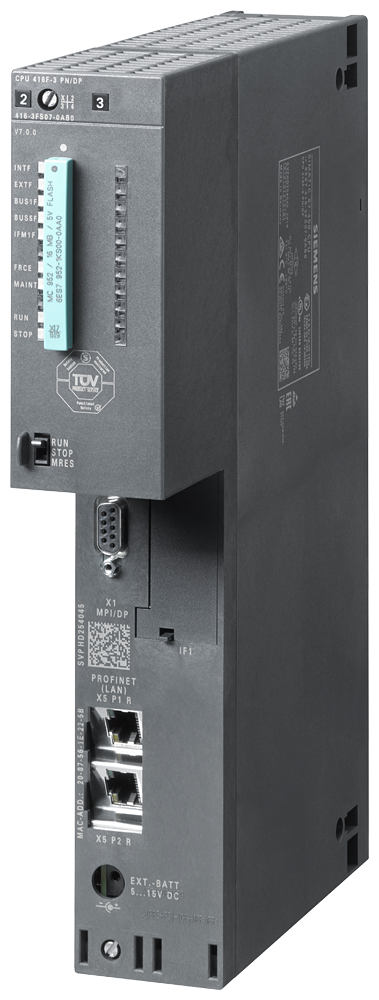

SIMATIC S7-400 CPU 416F-3 PN/DP 16 MB
SKU: 6ES7416-3FS07-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
S7-400 SIMATIC, CPU416F-3 PN/DP Core processor unit equipped with 16 MB of work memory, 8 MB of code, 8 MB of data, and interfaces.
The first interface (X1) is MPI/DP (12 Mbit/s).
The second interface (X5) is Ethernet/PROFINET.
Third interface plug-in IF 964-DP (IF1).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Work Memory:
Integrated: 16 Mbyte.
Integrated (for program): 8 Mbyte.
Integrated (for data): 8 Mbyte.
Interfaces:
Interfaces/bus type: 1 x MPI/PROFIBUS DP, 1 x PROFINET (2 ports), 1 x PROFIBUS DP (optionally pluggable).
Number of RS 485 interfaces: 1; Combined MPI / PROFIBUS DP.
Number of other interfaces: 1; PROFIBUS DP with IF 964-DP (plug-in option; MLFB: 6ES7964-2AA04 0AB0).
Interface type: MPI/PROFIBUS DP.
Isolated
Interface types:
RS 485.
Output current of the interface, max.: 150 Ma.
Supply Voltage: Power supply via system power supply.
Input Current:
From backplane bus 5 V DC: 1.3 A.
From backplane bus 5 V DC, max: 1.6 A.
From backplane bus 24 V DC, max: 300 mA; 150 mA per DP interface.
From interface 5 V DC, max: 90 mA; At each DP interface.
Power Loss:
Typical: 6.5 W.
Maximum: 8 W.
Memory Type: RAM.
Integrated Work Memory:
16 Mbyte.
8 Mbyte (for program).
8 Mbyte (for data).
Load Memory:
Expandable FEPROM: with Memory Card (FLASH).
Expandable FEPROM, max: 64 Mbyte.
Integrated RAM, max: 1 Mbyte.
Expandable RAM: with Memory Card (RAM).
Expandable RAM, max: 64 Mbyte.
Backup:
Present.
with battery.
Dimensions:
Width: 50 mm.
Height: 290 mm.
Depth: 219 mm.
