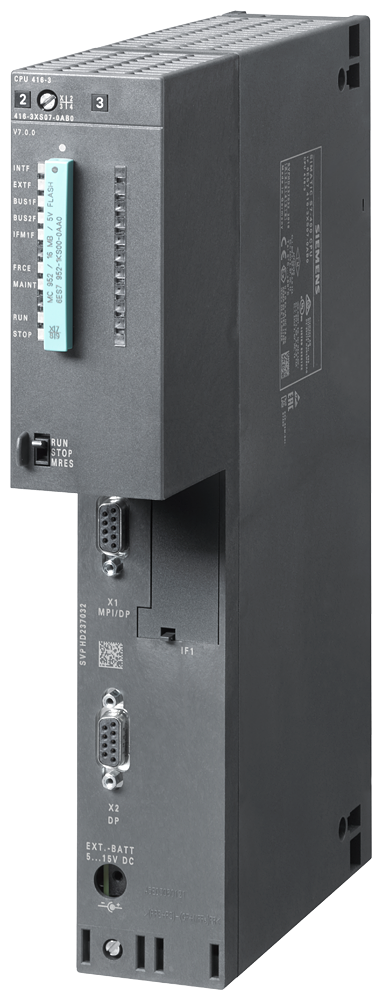

SIMATIC S7-400 CPU 416-3, 16 MB
SKU: 6ES7416-3XS07-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC S7-400, CPU 416-3, Central processing unit containing:
Work memory: 16 MB (8 MB code, 8 MB data).
1st interface: MPI/DP 12 Mbit/s.
Second interface: PROFIBUS DP.
Third interface plug-in IFM module.
General information:
Product type designation: CPU 416-3.
HW functional status: 01.
Firmware version: V7.0.
Product function:
Isochronous mode: Yes; For PROFIBUS only.
Engineering with:
Programming package: STEP 7 V5.4 or higher with HSP 261.
Buy currently uses Select Automation shop pricing and checkout.
CiR - Configuration in RUN:
CiR synchronization time, basic load: 100 ms.
CiR synchronization time, time per I/O byte: 10 µs.
Supply voltage:
Rated value (DC): Power supply via system power supply.
Input current:
from backplane bus 5 V DC, typ.: 1.1 A.
from backplane bus 5 V DC, max.: 1.3 A.
from backplane bus 24 V DC, max.: 450 mA; 150 mA per DP interface.
from interface 5 V DC, max.: 90 mA; At the DP interface.
Power loss:
Power loss, typ.: 5.5 W.
Power loss, max.: 6.5 W.
Memory:
Type of memory: RAM.
Work memory:
integrated: 16 Mbyte.
integrated (for program): 8 Mbyte.
integrated (for data): 8 Mbyte.
expandable: No.
Load memory:
expandable FEPROM: Yes; with Memory Card (FLASH).
expandable FEPROM, max.: 64 Mbyte.
integrated RAM, max.: 1 Mbyte.
expandable RAM: Yes; with Memory Card (RAM).
expandable RAM, max.: 64 Mbyte.
Backup:
present: Yes.
with battery: Yes; all data.
without battery: No.
Battery:
Backup battery:
Backup current, typ.: 180 µA; up to 40 °C.
Backup current, max.: 850 µA.
Backup time, max.: Dealt with in the module data manual with the secondary conditions and the factors of influence.
Feeding of external backup voltage to CPU: 5 V DC to 15 V DC.
Dimensions:
Width: 50 mm.
Height: 290 mm.
Depth: 219 mm.
Weights:
Weight, approx.: 900 g.
