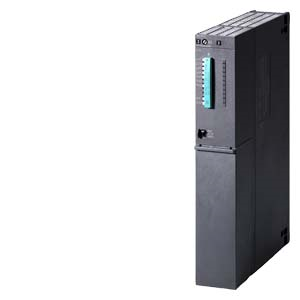

SIEMENS SIMATIC S7-400 CPU 417-4
SKU: 6ES7417-4XT05-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The CPU 1212C DC/DC/DC is intended for scalable control applications, having 8 digital inputs, 6 transistor outputs, and 2 analog inputs.
It offers PROFINET connectivity, high-speed counting, pulse train outputs, and OPC UA server capability, making it an excellent choice for motion control, diagnostics, and secure industrial networking.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Electrical & Power:
Supply Voltage: 24 V DC (range: 20.4–28.8 V).
Inrush Current: 12 A @ 28.8 V.
Power Loss: ~9 W.
Encoder Supply: 24 V DC (L+ minus 4 V min).
Backplane Bus Output: 1,000 mA @ 5 V DC.
Memory & Processing:
Work Memory: 100 KB.
Load Memory: 2 MB (via SIMATIC Memory Card).
Retentive Data: 14 KB.
Processing Times:
Bit: 0.08 µs.
Word: 1.7 µs.
Float: 2.3 µs.
Onboard I/O:
Digital Inputs: 8x DI (24 V DC, 6x HSC capable).
Digital Outputs: 6x DO (24 V DC, 4x PTO @ 100 kHz).
Analog Inputs: 2x AI (0–10 V DC, 10-bit resolution).
Analog Outputs: None.
Cable Lengths:
Shielded: 500 m (DI), 100 m (AI).
Unshielded: 300 m (DI).
Communication:
Interface: 1x PROFINET (RJ45, isolated).
Protocols Supported:
PROFINET IO Controller & Device.
MODBUS TCP.
OPC UA Server (license required).
S7 Routing.
TCP/IP, ISO-on-TCP, UDP.
Web Server: TLS 1.3 encrypted.
Max Connections: 68 total.
Integrated Functions:
High-Speed Counters: 6 @ 100 kHz.
Pulse Train Outputs: 4 @ 100 kHz.
PID Control: Yes.
Positioning Axes: 8 (4 via PTO).
Frequency Measurement: Yes.
Traces: 2 (512 KB each).
Diagnostic Buffer: Yes.
Forcing: Supported.
Status/control: 30 variables max.
Mechanical & Environmental:
Dimensions (W x H x D): 90 x 100 x 75 mm.
Weight ~370 g.
Protection Rating: IP20.
Operating Temp: -20 to +60 °C.
Vibration Resistance: 2 g wall / 1 g DIN rail.
Altitude: Up to 5000 m.
Compliance & Approvals:
CE, UL, FM, RCM, KC.
ATEX, IECEx.
Marine: ABS, DNV, LRS, BV, etc.
Siemens EcoTech & EPD.
Global Warming Potential: 76.4 kg CO₂ eq.
