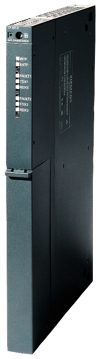

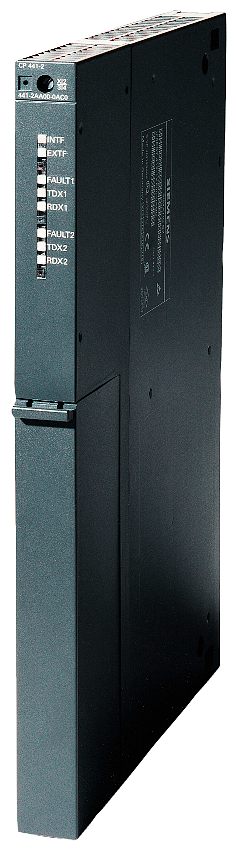

SIMATIC S7-400 CP 440-1 PtP With one channel for point-to-point connections
SKU: 6ES7440-1CS00-0YE0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC S7-400 with coupling module CP 440-1 for point-to-point connections, 1 channel, and configuration package on CD.
Supply voltage:
Rated value (DC).
5 V DC: Yes.
24 V DC: Yes.
Input current:
from backplane bus 5 V DC, max.: 360 mA.
Buy currently uses Select Automation shop pricing and checkout.
Power loss:
Power loss, typ.: 1.7 W.
Memory:
Memory requirements per interface in memory card of S7-CPU: 1 to 5 Kbytes for parameters.
Interfaces:
Number of interfaces: 1.
Point-to-point connection.
Integrated protocol driver:
3964 (R): Yes.
ASCII: Yes.
Transmission rate, RS 422/485:
with 3964 (R) protocol, max.: 115.2 kbit/s.
with ASCII protocol, max.: 115.2 kbit/s.
Ambient conditions:
Ambient temperature during operation:
min.: 0 °C.
max.: 60 °C.
Ambient temperature during storage/transportation:
min.: 0 °C.
max.: 70 °C.
Relative humidity:
Operation, max.: 95 %; no condensation.
configuration / header:
Configuration software:
STEP 7: Yes; own parameter assignment forms.
Dimensions:
Width: 25 mm.
Height: 290 mm.
Depth: 210 mm.
Weights:
Weight, approx.: 600 g.
