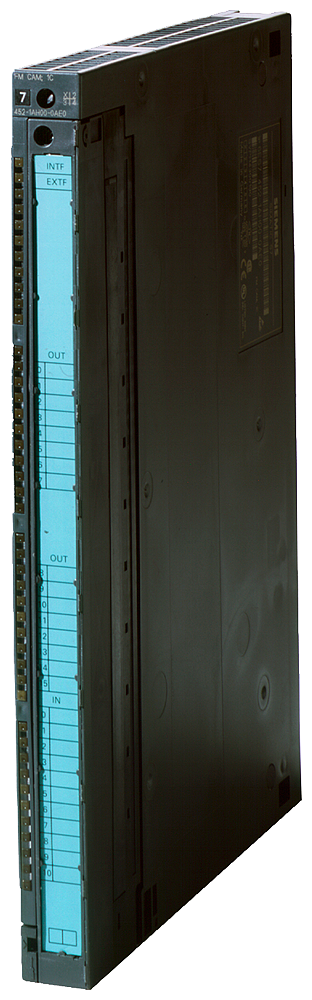

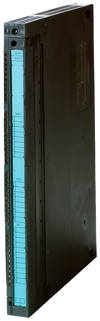

SIMATIC S7-400 FM 452 Electronic cam controller
SKU: 6ES7452-1AH00-0AE0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC S7-400 with cam control system FM 452 and electronic configuration package on CD.
Supply voltage:
Rated value (DC): 24 V.
Input current:
Current consumption, typ.: 500 mA.
Encoder supply:
5 V encoder supply:
5 V: Yes.
Output current, max.: 300 mA.
Cable length, max.: 32 m.
24 V encoder supply:
24 V: Yes.
Output current, max.: 300 mA.
Cable length, max.: 100 m.
Buy currently uses Select Automation shop pricing and checkout.
Power loss:
Power loss, typ.: 8.1 W.
Digital inputs:
Number of digital inputs: 11.
Functions: Reference point switch, flying actual value setting/length measurement, brake release, enable track output no. 3 to 10.
Input voltage:
Rated value (DC): 24 V.
for signal "0": -28.8 ... +5V.
for signal "1": +11 to +28.8V.
Input current:
for signal "0", max. (permissible quiescent current): 2 mA.
for signal "1", typ.: 9 mA.
Digital outputs:
Number of digital outputs: 16.
Functions: Cam track.
Short-circuit protection: Yes.
Output voltage:
Rated value (DC): 24 V.
for signal "1", min.: UP - 0.8 V.
Output current:
for signal "1" permissible range for 0 to 55 °C, max.: 600 mA; with UPmax.
for signal "0" residual current, max.: 0.5 mA.
Encoder:
Connectable encoders:
Incremental encoder (symmetrical): Yes.
Incremental encoder (asymmetrical): Yes.
Absolute encoder (SSI): Yes.
2-wire sensor Yes.
Encoder signals, incremental encoder (symmetrical):
Trace mark signals: A, notA, B, notB.
Zero mark signal: N, notN.
Input voltage: 5 V difference signal (phys. RS 422).
Input frequency, max.: 1 MHz.
Encoder signals, incremental encoder (asymmetrical):
Trace mark signals: A, B.
Zero mark signal: N.
Input voltage: 24 V.
Input frequency, max.: 50 kHz; 50 kHz for 25 m cable length; 25 kHz for 100 m cable length.
Encoder signals, absolute encoder (SSI):
Input signal: 5 V difference signal (phys. RS 422).
Data signal: DATA, notDATA.
Clock signal: CL, notCL.
Telegram length, parameterizable: 13 or 25 bit serial.
Clock frequency, max.: 1 MHz.
Gray code: 1.
Cable length, shielded, max.: 300 m; at max. 125 kHz.
Potential separation:
Potential separation digital inputs:
Potential separation digital inputs: No.
Potential separation digital outputs:
Potential separation digital outputs: No.
Ambient conditions:
Ambient temperature during operation:
min.: 0 °C.
max.: 55 °C.
Ambient temperature during storage/transportation:
min.: -40 °C.
max.: 70 °C.
connection method:
required front connector: 1x 48-pin.
Dimensions:
Width: 25 mm.
Height: 290 mm.
Depth: 210 mm.
Weights:
Weight, approx.: 650 g.
