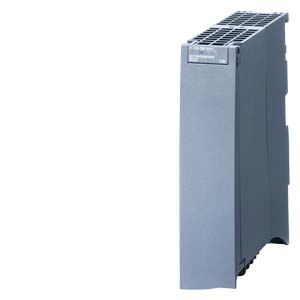

Siemens S7-1500 Power supply, 24 V DC input voltage, power 25 W
SKU: 6ES7505-0KA00-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The SIMATIC S7-1500 System Power Supply PS 25W 24 V DC provides operating voltage to the backplane bus.
General Information:
Product designation: PS 25W 24VDC.
HW functional status: from FS01.
Firmware version: V1.0.0.
Engineering with:
Step 7 TIA The portal is configurable/integrated as of version V12 / V12.
STEP 7 is configurable/integrated in version V5.5 SP3 or higher.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V; Static 19.2 V, dynamic 18.5 V.
permissible range, upper limit (DC): 28.8 V; Static 28.8 V, dynamic 30.2 V.
Reverse polarity protection: Yes.
Short-circuit protection: Yes.
Mains buffering:
Mains/voltage failure stored energy time: 20 ms.
Input current:
Rated value at 24 V DC: 1.3 A.
Output current:
Short-circuit protection: Yes.
Power:
Infeed power to the backplane bus: 25 W.
Power loss:
Power loss at nominal rating conditions: 6.2 W.
Interrupts/diagnostics/status information:
Status indicator: Yes.
Potential separation:
primary/secondary: Yes.
Isolation:
Isolation tested with: 707 V DC (type test).
EMC:
Interference immunity against voltage surge:
Interference immunity on supply lines acc. to IEC 61000-4-5: Yes; ±1 kV (acc. to IEC 61000-4-5; 1995; surge symm.), ±2 kV (acc. to IEC 61000-4-5; 1995; surge asymm.), no external protective circuit required.
Degree and class of protection:
Equipment protection class: III, with protective conductor.
Ambient conditions:
Ambient temperature during operation:
min.: -25 °C; up to FS03: 0°C.
max.: 60 °C.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual.
Dimensions:
Width: 35 mm.
Height: 147 mm.
Depth: 129 mm.
Weights:
Weight, approx.: 350 g.
