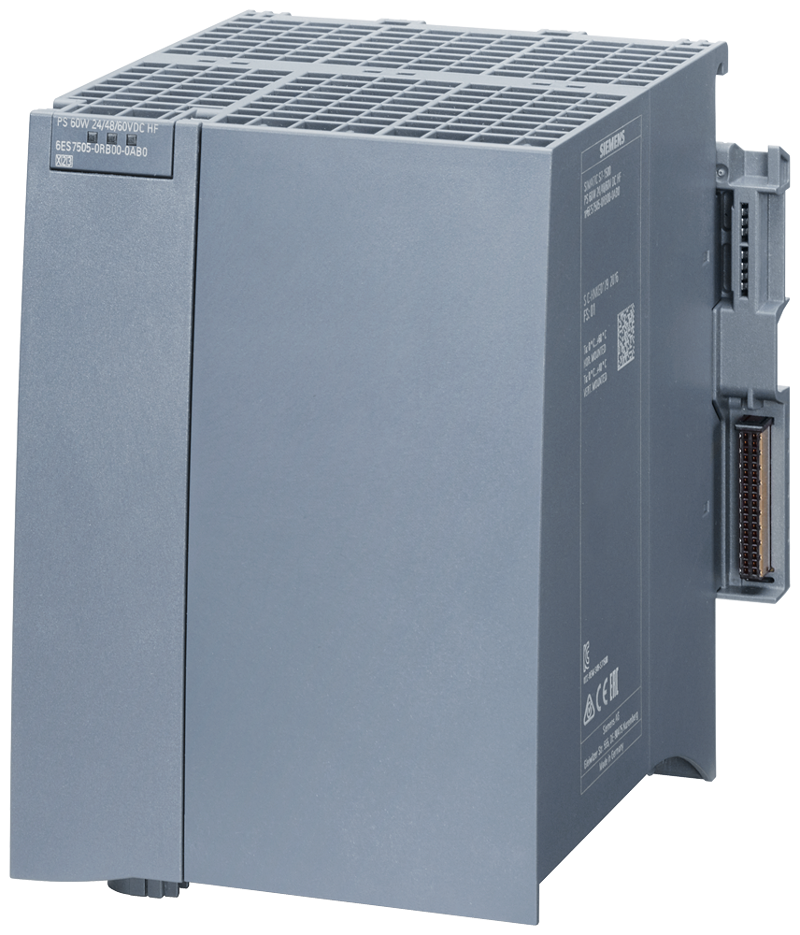

SIMATIC S7-1500 PS 60 W 24/48/60 V DC HF
SKU: 6ES7505-0RB00-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC S7-1500, system power supply with buffer functionality PS 60W 24/48/60V DC HF, provides operating voltage to the S7-1500's backplane bus while also allowing the CPU to maintain RAM (data) persistently.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product type designation: PS 60 W 24/48/60 V DC HF.
HW functional status: FS01.
Firmware version: from V1.0.0.
Width: 105 mm.
Height: 147 mm.
Depth: 129 mm.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V14 SP1.
Supply voltage:
Rated value (DC): 24 V / 48 V / 60 V.
Permissible range, lower limit (DC): 19.2 V; Static 19.2 V, dynamic 18.5 V.
Permissible range, upper limit (DC): 72 V; Static 72 V, dynamic 75.5 V.
Reverse polarity protection.
Short-circuit protection.
Mains buffering:
Mains/voltage failure stored energy time: 20 MS.
Input current:
Rated value at 24 V DC: 3 A.
Rated value at 48 V DC: 1.5 A.
Rated value at 60 V DC: 1.2 A.
Inrush current, max.: ≤ 8 A for T ≤ 1 s.
Output current:
Short-circuit protection.
Power:
Infeed power to the backplane bus: 60 W.
Power loss at nominal rating conditions: 12 W.
Ambient temperature during operation:
Min: -25 °C.
Max.: 60 °C.
