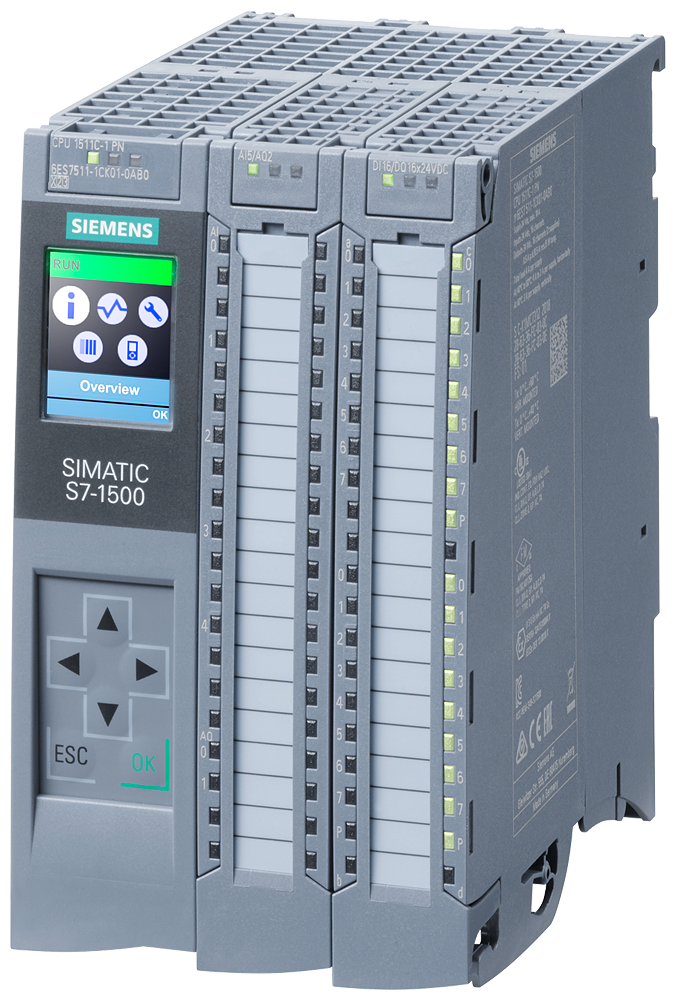

SIMATIC S7-1500 CPU 1511C-1 PN 16DI/16DQ/5AI/2AQ
SKU: 6ES7511-1CK01-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SIMATIC S7-1500 Compact CPU (1511C-1PN) has 175 KB of program memory and 1 MB of data storage.
Sixteen digital inputs.
Sixteen digital outputs.
Five analog inputs.
Two analog outputs.
Six high-speed counters.
Four high-speed outputs for PTO, PWM, and frequency output 1.
Interface: PROFINET IRT with 2 port switch, 60 NS bit performance, front connector push-in.
SIMATIC memory card is mandatory.
Buy currently uses Select Automation shop pricing and checkout.
General information:
Product type designation: CPU 1511C-1 PN.
HW functional status: FS03.
Firmware version: V2.9.
Product function:
I&M data: Yes; I&M0 to I&M3.
Isochronous mode: Yes; With minimum OB 6x cycle of 625 µs (distributed).
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V17 (FW V2.9) / V15 (FW V2.5) or higher; with older TIA Portal versions configurable as 6ES7511-1CK00-0AB0.
Configuration control:
via dataset: Yes.
Display:
Screen diagonal [cm]: 3.45 cm.
Control elements:
Number of keys: 8.
Mode buttons: 2.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V; 20.4 V DC, for supplying the digital inputs/outputs.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes.
Mains buffering:
Mains/voltage failure stored energy time: 5 ms; Refers to the power supply on the CPU section.
Repeat rate, min.: 1/s.
Input current:
Current consumption (rated value): 0.8 A; Without load; 9.8 A: CPU + load.
Current consumption, max.: 1 A; Without load; 10 A: CPU + load.
Inrush current, max.: 1.9 A; Rated value.
I²t: 0.34 A²·s.
Digital inputs:
from load voltage L+ (without load), max.: 20 mA; per group.
Digital outputs:
from load voltage L+, max.: 30 mA; Per group, without load.
output voltage / header:
Rated value (DC): 24 V.
Encoder supply:
Number of outputs: 1; One common 24 V encoder supply.
24 V encoder supply:
24 V: Yes; L+ (-0.8 V).
Short-circuit protection: Yes.
Output current, max.: 1 A.
Power:
Infeed power to the backplane bus: 10 W.
Power consumption from the backplane bus (balanced): 8.5 W.
Power loss:
Power loss, typ.: 11.8 W.
Memory:
Number of slots for SIMATIC memory card: 1.
SIMATIC memory card required: Yes.
Work memory:
integrated (for program): 175 kbyte.
integrated (for data): 1 Mbyte.
Load memory:
Plug-in (SIMATIC Memory Card), max.: 32 Gbyte.
Backup:
maintenance-free: Yes.
