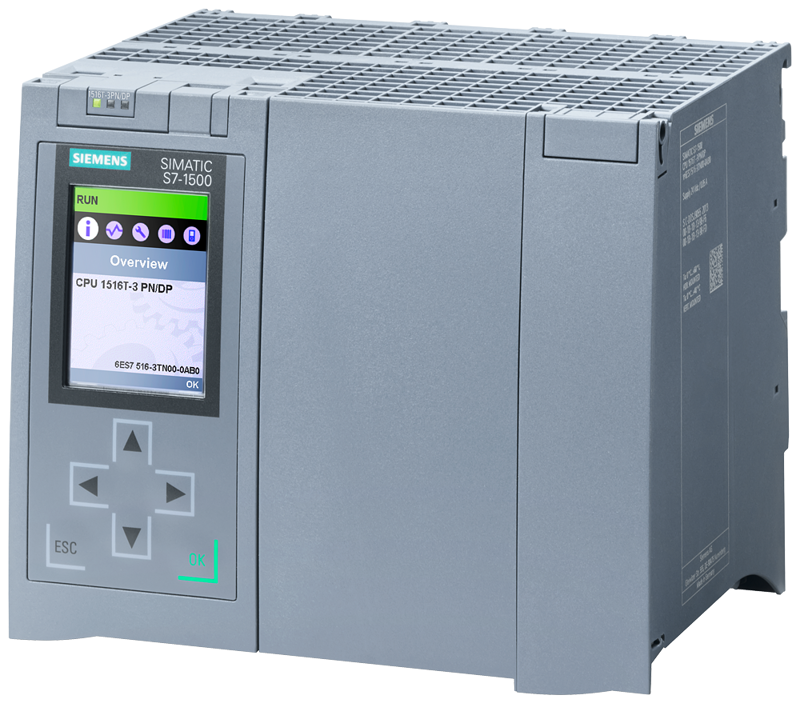

SIMATIC S7-1500 CPU 1516T-3 PN/DP
SKU: 6ES7516-3TN00-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SIMATIC S7-1500T has a CPU 1516T-3 PN/DP with 3 MB of program memory and 7.5 MB of data memory.
First interface: PROFINET IRT with a two-port switch.
Second interface: Ethernet.
6 ns bit performance, third interface, PROFIBUS.
SIMATIC Memory Card is required.
Buy currently uses Select Automation shop pricing and checkout.
General information:
Product type designation: CPU 1516T-3 PN/DP.
HW functional status: FS11.
Firmware version: V3.1.
FW update possible: Yes.
Product function:
I&M data: Yes; I&M0 to I&M3.
Isochronous mode: Yes; Distributed and central; with minimum OB 6x cycle of 125 µs (distributed) and 1 ms (central).
SysLog: Yes.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V19 (FW V3.1) / V15 (FW V2.5) or higher.
Configuration control:
via dataset: Yes.
Display:
Screen diagonal [cm]: 6.1 cm.
Control elements:
Number of keys: 6.
Mode selector switch: 1.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes.
Mains buffering:
Mains/voltage failure stored energy time: 5 ms.
Repeat rate, min.: 1/s.
Input current:
Current consumption (rated value): 1.2 A.
Current consumption, max.: 1.5 A.
Inrush current, max.: 1.9 A; Rated value.
I²t: 0.4 A²·s.
Power:
Infeed power to the backplane bus: 12 W.
Power consumption from the backplane bus (balanced): 30 W.
Power loss:
Power loss, typ.: 24 W.
Memory:
Number of slots for SIMATIC memory card: 1.
SIMATIC memory card required: Yes.
Work memory:
integrated (for program): 3 Mbyte.
integrated (for data): 7.5 Mbyte.
Load memory:
Plug-in (SIMATIC Memory Card), max.: 32 Gbyte.
Backup:
maintenance-free: Yes.
