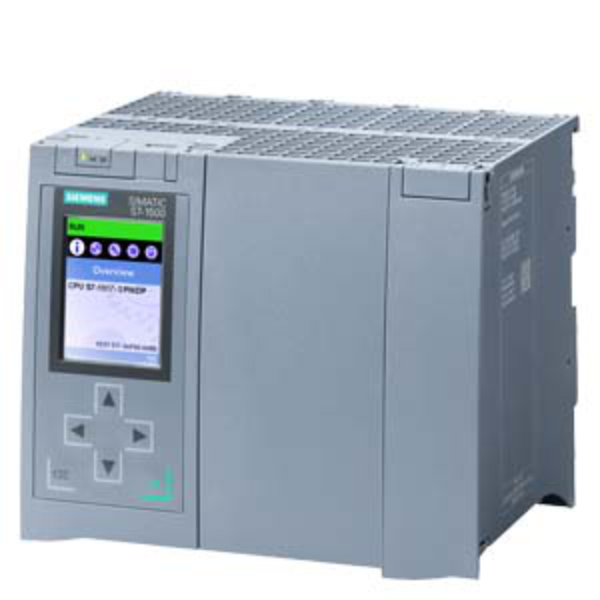

Siemens S7-1500 CPU 1517-3 PN/DP
SKU: 6ES7517-3AP00-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This panel features a 12-inch widescreen TFT display with 1280 × 800 resolution, combining touch functionality with 10 programmable function keys.
It’s optimized for PROFINET-based systems, offering seamless integration with SIMATIC S7-1200 and S7-1500 controllers.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display Size: 12" TFT colour.
Resolution: 1280 × 800 pixels.
Touch Type: Analog-resistive.
Function Keys: 10 programmable keys.
Backlight Lifetime: ~20,000 hours.
Processor: ARM-based.
RAM / Flash: 128 MB each.
User Memory: 10 MB.
Interface: 1 × Ethernet (RJ45), 1 × USB host.
Protocols Supported: PROFINET, Modbus TCP/IP, EtherNet/IP.
Power Supply: 24 V DC (19.2–28.8 V range).
Power Consumption: ~6 W.
Dimensions (W×H×D): 330 × 243 × 39.4 mm.
Mounting Cutout: 314 × 227 mm.
Weight: ~1.9 kg.
Environmental Ratings:
Operating Temp: 0 to +50 °C.
Storage Temp: –20 to +60 °C.
Humidity: Up to 90% (non-condensing).
Protection Class: IP65 (front), IP20 (rear).
Vibration/Shock: IEC 60068-2 compliant.
Certifications & Approvals:
CE, UL, CSA, RCM, KC.
Marine: ABS, BV, DNV, LRS, RINA, NK.
EMC: EN 61000-6-2 / EN 61000-6-4.
Environmental Product Declaration (EPD).
Global Warming Potential: ~85 kg CO₂ eq.
