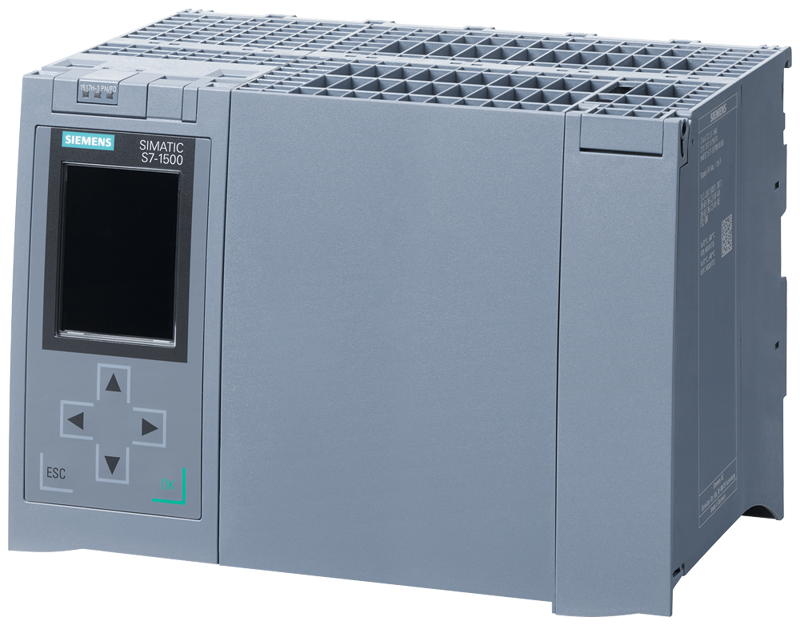

SIMATIC S7-1500 CPU 1517H-3 PN
SKU: 6ES7517-3HP00-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Using 2 MB of program memory and 8 MB of data memory, the SIMATIC S7-1500H CPU 1517H-3 PN is a CPU.
First interface: PROFINET RT with a two-port switch.
Second interface: PROFINET.
Third/4th interface: H-SYNC.
SIMATIC Memory Card is required.
General information:
Product type designation: CPU 1517H-3 PN.
HW functional status: FS06.
Firmware version: V3.1.
FW update possible: Yes.
Product function:
I&M data: Yes; I&M0 to I&M3.
Isochronous mode: No.
Syslog: Yes.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V19 (FW V3.1) / V15.1 (FW V2.6) or higher.
Display:
Screen diagonal [cm]: 6.1 cm.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes.
Mains buffering:
Mains/voltage failure stored energy time: 5 ms.
Repeat rate, min.: 1/s.
Input current:
Current consumption (rated value): 1.5 A.
Current consumption, max.: 1.9 A.
Inrush current, max.: 1.9 A; Rated value.
I²t: 0.4 A²·s.
Power:
Infeed power to the backplane bus: 12 W.
Power consumption from the backplane bus (balanced): 30 W.
Power loss:
Power loss, typ.: 24 W.
Memory:
Number of slots for SIMATIC memory card: 1.
SIMATIC memory card required: Yes.
Work memory:
integrated (for program): 2 Mbyte.
integrated (for data): 8 Mbyte.
Load memory:
Plug-in (SIMATIC Memory Card), max.: 32 Gbyte.
Backup:
maintenance-free: Yes.
Interrupts/diagnostics/status information:
Diagnostics indication LED:
RUN/STOP LED: Yes.
ERROR LED: Yes.
MAINT LED: Yes.
Connection display LINK TX/RX: Yes.
Ambient conditions:
Ambient temperature during operation:
horizontal installation, min.: 0 °C.
horizontal installation, max.: 60 °C; Display: 50 °C, at an operating temperature of typically 50 °C, the display is switched off.
vertical installation, min.: 0 °C.
vertical installation, max.: 40 °C; Display: 40 °C, at an operating temperature of typically 40 °C, the display is switched off.
Ambient temperature during storage/transportation:
min.: -40 °C.
max.: 70 °C.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual.
Dimensions:
Width: 210 mm.
Height: 147 mm.
Depth: 129 mm.
Weights:
Weight, approx.: 2 094 g; Interface modules: 2x 18 g.
