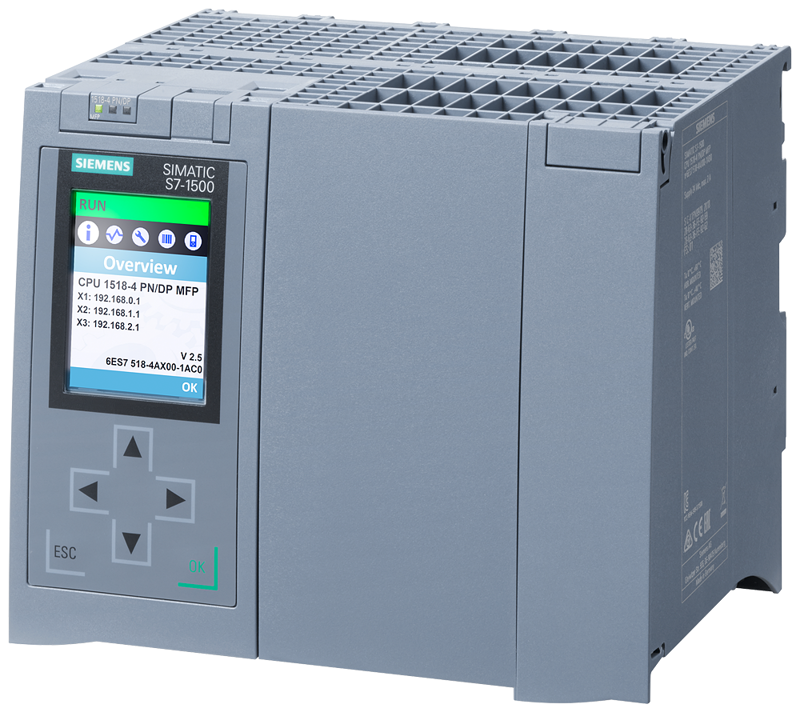

SIMATIC S7-1500 CPU 1518-4 PN/DP MFP
SKU: 6ES7518-4AX00-1AC0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC S7-1500 CPU Bundle consists of:
CPU 1518-4 PN/DP MFP (6ES7518-4AX00-1AB0), with C/C++ Runtime and OPC UA Runtime licenses.
The software takes up 6 MB of work memory and 60 MB of data.
First interface: PROFINET IRT with a two-port switch.
Second interface: PROFINET RT.
The third interface provides PROFINET basic services.
4th interface: PROFIBUS with 1 ns bit performance.
SIMATIC Memory Card (minimum 2 GB) required.
Buy currently uses Select Automation shop pricing and checkout.
General information:
Product type designation: CPU 1518-4 PN/DP MFP.
HW functional status: FS04.
Firmware version: V3.0.
Product function:
I&M data: Yes; I&M0 to I&M3.
Isochronous mode: Yes; Distributed and central; with minimum OB 6x cycle of 125 µs (distributed) and 1 ms (central).
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V18 (FW V3.0); V15 (FW V2.5) or higher.
Configuration control:
via dataset: Yes.
Display:
Screen diagonal [cm]: 6.1 cm.
Control elements:
Number of keys: 6.
Mode selector switch: 1.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes.
Mains buffering:
Mains/voltage failure stored energy time: 5 ms.
Repeat rate, min.: 1/s.
Input current:
Current consumption (rated value): 1.7 A.
Current consumption, max.: 2 A.
Inrush current, max.: 2 A; Rated value.
I²t: 0.4 A²·s.
Power:
Infeed power to the backplane bus: 12 W.
Power consumption from the backplane bus (balanced): 35 W.
Power loss:
Power loss, typ.: 29 W.
Memory:
Number of slots for SIMATIC memory card: 1.
SIMATIC memory card required: Yes.
Work memory:
integrated (for program): 6 Mbyte.
integrated (for data): 60 Mbyte.
integrated (for CPU function library of CPU Runtime): 50 Mbyte; Note: The "CPU function library of the CPU" are C/C++ blocks for the user program that were created using the SIMATIC ODK 1500S or Target 1500S.
Working memory for additional functions:
Integrated (for C/C++ Runtime application): 1 024 Mbyte.
available (for Linux runtime application): 1 Gbyte.
Load memory:
Plug-in (SIMATIC Memory Card), max.: 32 Gbyte; the memory card must have at least 2 GB of space on it.
Backup:
maintenance-free: Yes.
