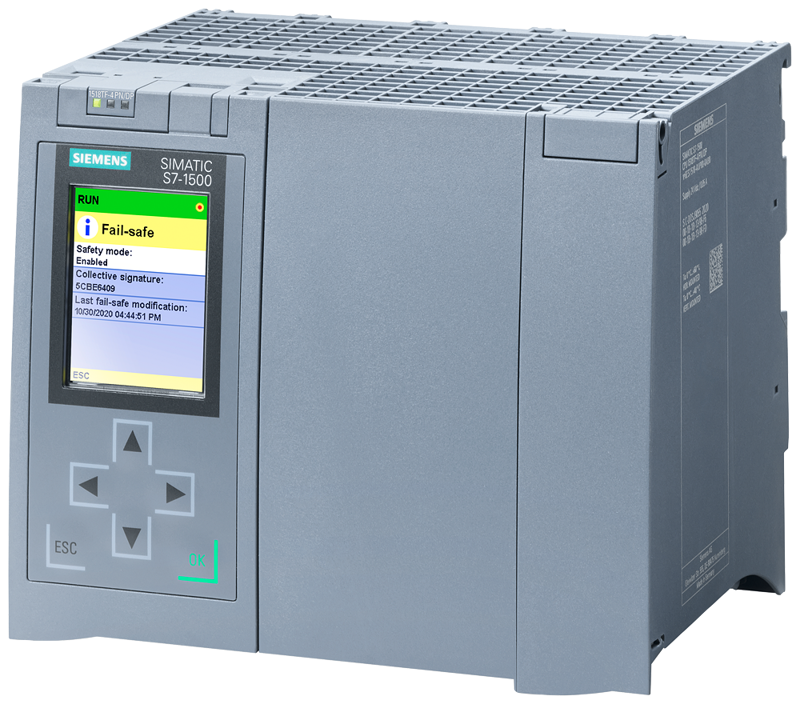

SIMATIC S7-1500 CPU 1518TF-4 PN/DP
SKU: 6ES7518-4UP00-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC S7-1500TF, CPU 1518TF-4 PN/DP, central processing unit with 9 MB of work memory and 60 MB of data.
First interface: PROFINET IRT with a two-port switch.
Second interface: PROFINET RT.
The third interface provides PROFINET basic services.
4th interface: PROFIBUS with 1 ns bit performance.
SIMATIC memory card is required.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Work Memory: 9 MB for program, 60 MB for data.
Interfaces:
1st: PROFINET IRT with 2-port switch.
2nd: PROFINET RT.
3rd: PROFINET basic services.
4th: PROFIBUS.
Performance: 1 ns bit performance.
Supply Voltage: 24 V DC.
Display: 6.1 cm screen diagonal.
Power Consumption: 12 W from the backplane bus, 30 W balanced.
Memory Card: SIMATIC memory card required.
Firmware Version: V2.9.
Engineering: Configurable with STEP 7 TIA Portal from version V17.
