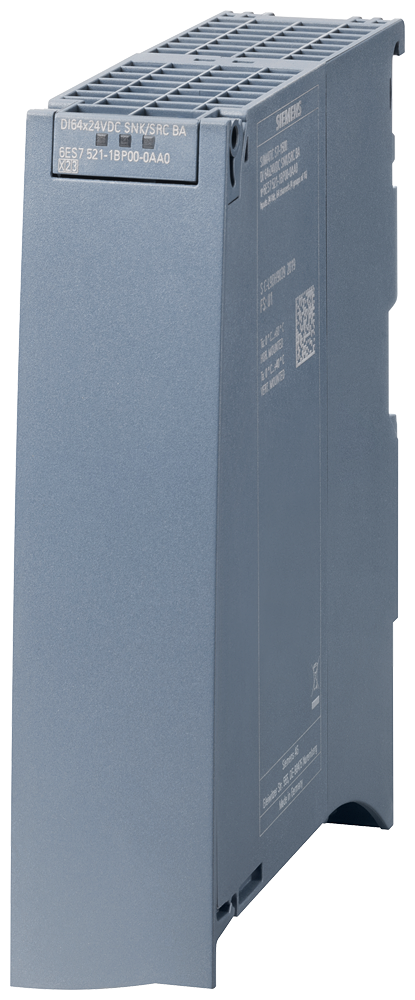

SIMATIC S7-1500 DI 64x24VDC BA 35 mm
SKU: 6ES7521-1BP00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC S7-1500, digital input module, input delay type, 64 channels in groups of 16, DI 64xDC 24V SNK/SRC BA. 3.2 MS, sinking/sourcing input; input type 3 (IEC 61131).
35 mm wide; cables and termination blocks are accessories that need to be acquired individually.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product type designation: DI 64x24VDC BA.
HW functional status: From FS01.
Firmware version: V1.0.0.
FW updates possible.
Product function (I&M data): I&M0 to I&M3.
Operating mode: DI, MSI.
Width: 35 mm.
Height: 147 mm.
Depth: 129 mm.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V16 with HSP 0319 / V17.
STEP 7 configurable/integrated from version: V5.5 SP3.
PROFIBUS from GSD version/GSD revision: V1.0 / V5.1.
PROFINET from GSD version/GSD revision: V2.35.
Supply voltage:
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
External protection for power supply lines (recommendation): 24 V DC/4 A miniature circuit breaker with type B or C tripping characteristic.
Power:
Power available from the backplane bus: 0.6 W.
Power loss, typ.: 4.8 W.
Digital inputs:
Number of digital inputs: 64.
Source/sink input.
Input characteristic curve in accordance with IEC 61131, type 3.
Input voltage:
Rated value (DC): 24 V.
For signal "0": -5 to +5 V (reference potential is COM).
For signal "1": + -11 to -30 V; +11 to +30 V (reference potential is COM).
Input current:
For signal "1", typ.: 2.7 mA.
Input delay (for rated value of input voltage) (standard inputs):
At "0" to "1", min.: 3 MS.
At "0" to "1", max.: 4 MS.
At "1" to "0", min.: 3 MS.
At "1" to "0", max.: 4 MS.
Cable length:
Shielded, max.: 1 000 m.
Unshielded, max.: 600 m.
Connectable encoders:
2-wire sensor.
Permissible quiescent current (2-wire sensor), max.: 1.5 Ma.
Ambient temperature during operation:
Horizontal installation, min.: -30 °C.
Horizontal installation, max.: 60 °C.
Vertical installation, min.: -30 °C.
Vertical installation, max.: 40 °C.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 5 000 m.
