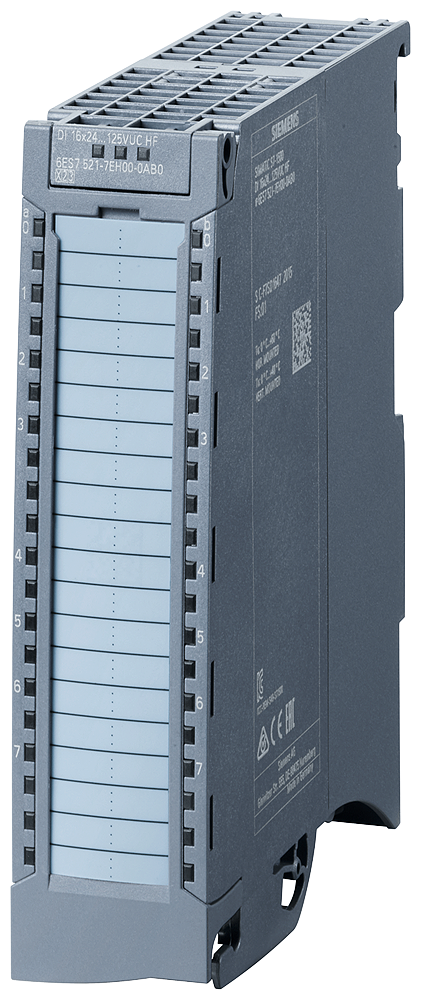

SIMATIC S7-1500 DI 16x24 ... 125 V UC HF 35 mm

Specifications: Product type designation: DI 16x24 - 125 V UC HF. HW functional status: From FS01. Firmware version: V1.0.0. FW updates possible. Operating mode: DI, MSI. Width: 35 mm. Height: 147 mm. Depth: 129 mm. Product function: I&M data: I&M0 to I&M3. Prioritized startup. Engineering with: STEP 7 TIA Portal configurable/integrated from version: V13 SP1. STEP 7 configurable/integrated from version: V5.5 SP3. PROFIBUS from GSD version/GSD revision: V1.0 / V5.1. PROFINET from GSD version/GSD revision: V2.3. Power: Power available from the backplane bus: 1.2 W. Power loss, typ.: 2.2 W; At 24 V DC; 6.0 W at 125 V AC. Digital inputs: Number of digital inputs: 16. Digital inputs, parameterizable. Source/sink input. Input characteristic curve in accordance with IEC 61131, type 3: At 24 V DC. Input voltage: Rated value (DC): 24 V; 48 V, 125 V. Rated value (AC): 24 V; 48 V, 125 V (50 - 60 Hz). For signal "0": -5 to +5 V. For signal "1": +11 to +146 V. Input current: For signal "1", typ.: 3 mA; At 24 V DC. Input delay (for rated value of input voltage) (standard inputs): Parameterizable: 0.05 / 0.1 / 0.4 / 1.6 / 3.2 / 12.8 / 20 MS parameterizable with DC, 20 MS fixed with AC. At "0" to "1", min.: 0.05 MS. At "0" to "1", max.: 20 MS. At "1" to "0", min.: 0.05 MS. At "1" to "0", max.: 20 MS. For interrupt inputs: Parameterizable. Cable length: Shielded, max.: 1 000 m. Unshielded, max.: 600 m. Connectable encoders: 2-wire sensor. Permissible quiescent current (2-wire sensor), max.: 1.5 Ma. Ambient temperature during operation: Horizontal installation, min.: 0 °C. Horizontal installation, max.: 60 °C. Vertical installation, min.: 0 °C. Vertical installation, max.: 40 °C.
