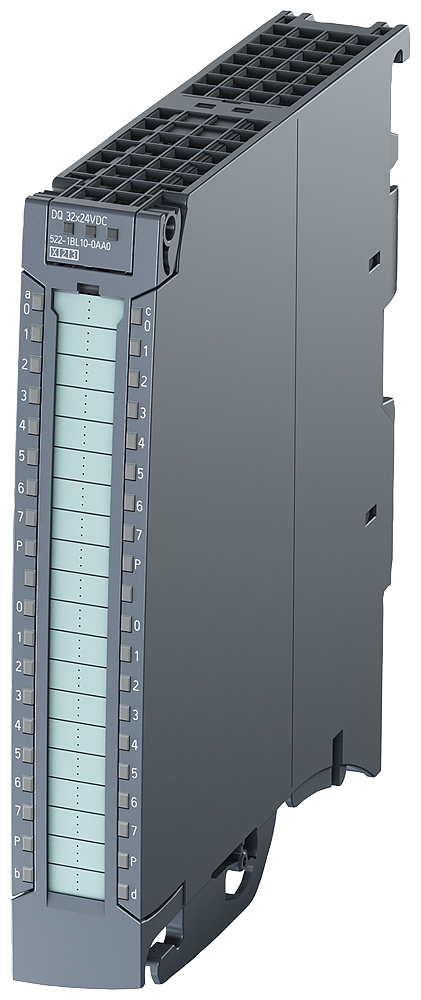

SIMATIC S7-1500 DQ 32x24VDC/0.5A HF 35 mm
SKU: 6ES7522-1BL01-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SIMATIC S7-1500 DQ digital output module has 32 channels arranged in 8 groups, each with 4 A. It also features single-channel diagnostics and a cycle counter for linked actuators that alternately switch values.
The module offers the safety-oriented shutdown of load groups up to SIL2 and Category 3 / PL d, in accordance with EN IEC 62061:2021 and EN ISO 13849-1:2015, respectively.
Front connections with screw terminals or push-ins need to be ordered separately.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product type designation: DQ 32x24VDC/0.5A HF.
HW functional status: From FS02.
Firmware version: V1.1.0.
Operating mode: DQ, MSO, Integrated operating cycle counter.
Width: 35 mm.
Height: 147 mm.
Depth: 129 mm.
Product function:
I&M data: I&M0 to I&M3.
Isochronous mode.
Prioritized startup.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V13 SP1.
STEP 7 configurable/integrated from version: V5.5 SP3.
PROFIBUS from GSD version/GSD revision: V1.0 / V5.1.
PROFINET from GSD version/GSD revision: V2.3.
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: through internal protection with 7 A per group.
Input current:
Current consumption, max.: 60 mA.
Output voltage / header:
Rated value (DC): 24 V.
Power:
Power available from the backplane bus: 1.1 W.
Power loss, typ.: 3.5 W.
Digital outputs:
Type of digital output: Transistor.
Number of digital outputs: 32.
Current sourcing.
Digital outputs, parameterizable.
Short-circuit protection: Clocked electronically.
Response threshold, typ.: 1 A.
Limitation of inductive shutdown voltage to: L+ (-53 V).
Controlling a digital input.
Switching capacity of the outputs:
With resistive load, max: 0.5 A.
On lamp load, max.: 5 W.
Load resistance range:
Lower limit: 48 Ω.
Upper limit: 12 kΩ.
Output voltage:
For signal "1", min.: L+ (-0.8 V).
Output current:
For signal "1" rated value: 0.5 A.
For signal "1" permissible range, max.: 0.5 A.
For signal "0" residual current, max.: 0.5 Ma.
Output delay with resistive load:
"0" to "1", max.: 100 µs.
"1" to "0", max.: 500 µs.
Parallel switching of two outputs:
For logic links.
For redundant control of a load.
Switching frequency:
With resistive load, max.: 100 Hz.
With inductive load, max.: 0.5 Hz; According to IEC 60947-5-1, DC-13.
On lamp load, max.: 10 Hz.
Total current of the outputs:
Current per channel, max.: 0.5 A.
Current per group, max.: 4 A.
Current per module, max.: 16 A.
Cable length:
Shielded, max.: 1 000 m.
Unshielded, max.: 600 m.
Ambient temperature during operation:
Horizontal installation, min.: -30 °C; From FS03.
Horizontal installation, max.: 60 °C.
Vertical installation, min.: -30 °C; From FS03.
Vertical installation, max.: 40 °C.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 5 000 m; Restrictions for installation altitudes > 2000 m.
