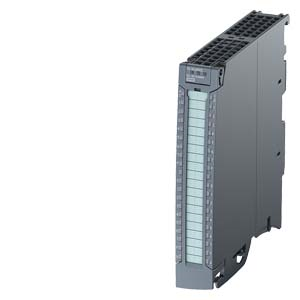

Siemens S7-1500 SM 522 Digital output modules DQ 32X24VDC/0.5A BA
SKU: 6ES7522-1BL10-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
SIMATIC S7-1500, digital output module, DQ32xDC 24V/0.5A BA, 32 channels in groups of 8, 4 A per group; the module provides safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3/PL d according to EN ISO 13849-1:2015.
Delivered items include a push-in front connector.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product type designation: DQ 32x24VDC/0.5A BA.
HW functional status: From FS01.
Firmware version: V1.0.0.
Width: 25 mm.
Height: 147 mm.
Depth: 129 mm.
Product function:
I&M data: I&M0 to I&M3.
Prioritized startup.
Operating mode:
DQ.
MSO.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: through internal protection with 7 A per group.
Input current:
Current consumption, max: 60 mA.
Output voltage / header:
Rated value (DC): 24 V.
Power:
Power available from the backplane bus: 1.15 W.
Power loss, type: 3.8 W.
Digital outputs:
Type of digital output: Transistor.
Number of digital outputs: 32.
Current sourcing.
Short-circuit protection.
Response threshold, type: 1 A.
Limitation of inductive shutdown voltage to: L+ (-53 V).
Controlling a digital input.
