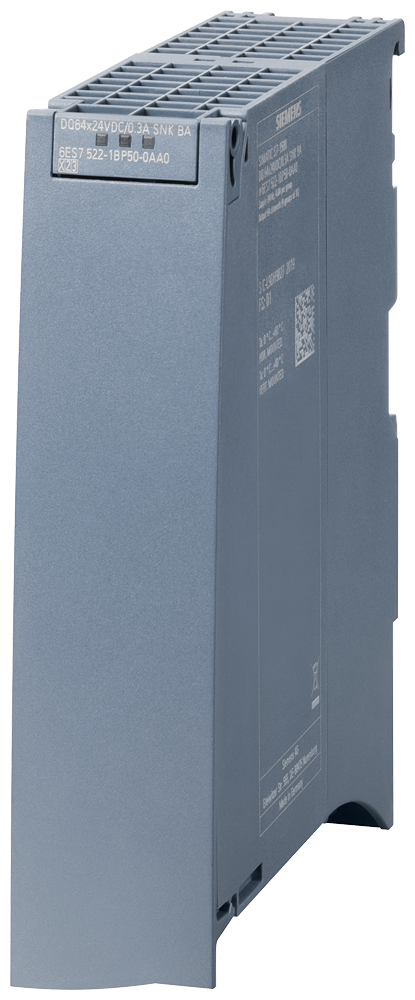

SIMATIC S7-1500 DQ 64x24VDC/0.3A BA 35 mm
SKU: 6ES7522-1BP00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC S7-1500, digital output module, DQ 64xDC 24V/0.3A BA, 64 channels in groups of 16, 2 A per group at 60 °C, sinking output, 35 mm wide.
The module supports safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015.
Terminal blocks and cables must be ordered separately as accessories.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product type designation: DQ 64x24VDC/0.3A SNK BA.
HW functional status: From FS01.
Firmware version: V1.0.0.
FW updates possible.
Product function (I&M data): I&M0 to I&M3.
Operating mode: DQ, MSO.
Width: 35 mm.
Height: 147 mm.
Depth: 129 mm.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V16 with HSP 0319 / V17.
STEP 7 configurable/integrated from version: V5.5 SP3.
PROFIBUS from GSD version/GSD revision: V1.0 / V5.1.
PROFINET from GSD version/GSD revision: V2.35.
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Through internal protection with 7 A per group.
External protection for power supply lines (recommendation): 24 V DC/6 A miniature circuit breaker with type B tripping characteristic.
Input current:
Current consumption, max: 90 mA; without load.
Output voltage / header:
Rated value (DC): 24 V.
Power:
Power available from the backplane bus: 0.6 W.
Power loss, typ.: 3.5 W.
Digital outputs:
Type of digital output: Transistor.
Number of digital outputs: 64.
Current sourcing.
Short-circuit protection.
Limitation of inductive shutdown voltage to: L+ (-53 V).
Controlling a digital input.
Switching capacity of the outputs:
With resistive load, max.: 0.3 A.
On lamp load, max.: 5 W.
Load resistance range:
Lower limit: 80 Ω.
Upper limit: 10 k Ω.
Output voltage:
For signal "1", min.: L+ (-0.8 V).
Output current:
For signal "1" rated value: 0.3 A.
For signal "1" permissible range, max.: 0.3 A.
For signal "0" residual current, max.: 0.5 mA.
Parallel switching of two outputs:
For logic links.
For redundant control of a load.
Switching frequency:
With resistive load, max.: 100 Hz.
With inductive load, max.: 0.5 Hz; According to IEC 60947-5-1, DC-13.
On lamp load, max.: 10 Hz.
Total current of the outputs:
Current per channel, max.: 0.3 A.
Current per group, max.: 2 A.
Current per module, max.: 8 A.
Total current of the outputs (per module):
Horizontal installation — up to 60 °C, max.: 8 A.
Vertical installation — up to 40 °C, max.: 8 A.
Cable length:
Shielded, max.: 1 000 m.
Unshielded, max.: 600 m.
Ambient temperature during operation:
Horizontal installation, min: -30 °C.
Horizontal installation, max: 60 °C.
Vertical installation, min: -30 °C.
Vertical installation, max: 40 °C.
Altitude during operation relating to sea level:
Installation altitude above sea level, max: 5 000 m.
