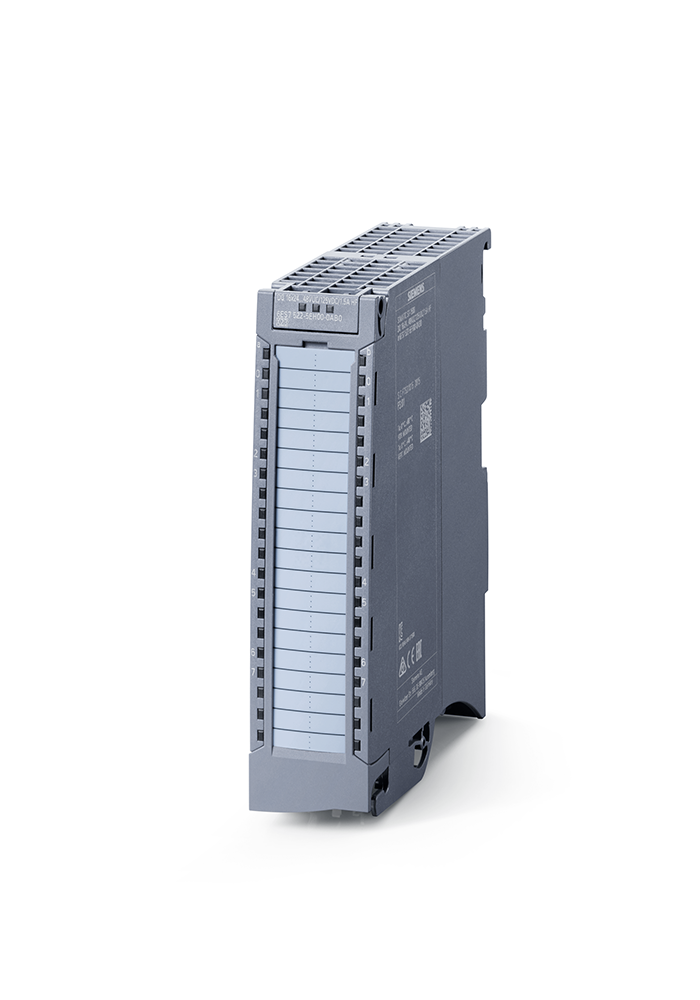

SIMATIC S7-1500 DQ 16x24 ... 48 V UC/125 V DC/0.5 A ST 35 mm
SKU: 6ES7522-5EH00-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
In accordance with EN IEC 62061:2021 and EN ISO 13849-1:2015, the SIMATIC S7-1500 digital output module DQ16x24.48VUC/125V DC/0.5A ST supports safety-oriented shutdown of load groups up to SIL2 and Category 3 / PL d.
The module has 16 channels organized into groups of 1, with 0.5 A per group.
The substitute value for this module is observe derating.
Push-in or screw-terminal front connectors must be ordered individually.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product type designation: DQ 16x24 - 48 V UC/125 V DC/0.5 A ST.
HW functional status: From FS01.
Firmware version: V1.0.0.
FW updates possible.
Operating mode: DQ, MSO, Integrated operating cycle counter (FW V1.1.0 or higher).
Width: 35 mm.
Height: 147 mm.
Depth: 129 mm.
Product function:
I&M data: I&M0 to I&M3.
Prioritized startup.
Output voltage / header:
Rated value (DC): 24 V; 48 V, 125 V.
Rated value (AC): 24 V; 48 V (50 - 60 Hz).
Power:
Power available from the backplane bus: 2 W.
Power loss, typ.: 3.8 W.
Digital outputs:
Type of digital output: Transistor.
Number of digital outputs: 16.
Current sinking.
Current sourcing.
Digital outputs, parameterizable.
Limitation of inductive shutdown voltage to 200 V (suppressor diode).
Controlling a digital input.
Switching capacity of the outputs:
With resistive load, max: 0.5 A.
On lamp load, max.: 40 W; At 125 V DC, 10 W at 48 V UC, 5 W at 24 V UC.
Output voltage:
For signal "1", min.: L+ (-1.0 V).
Output current:
For signal "1" rated value: 0.5 A.
For signal "1" permissible range, max.: 0.6 A.
Output delay with resistive load:
"0" to "1", max.: 5 MS.
"1" to "0", max.: 5 MS.
Parallel switching of two outputs:
For logic links.
For redundant control of a load.
Switching frequency:
With resistive load, max.: 25 Hz.
With inductive load, max.: 0.5 Hz.
On lamp load, max.: 10 Hz.
Total current of the outputs:
Current per channel, max.: 0.5 A.
Current per group, max.: 0.5 A.
Current per module, max.: 8 A.
Cable length:
Shielded, max.: 1 000 m.
Unshielded, max.: 600 m.
Ambient temperature during operation:
Horizontal installation, min.: -25 °C; From FS05.
Horizontal installation, max.: 60 °C.
Vertical installation, min.: -25 °C; From FS05.
Vertical installation, max.: 40 °C.
