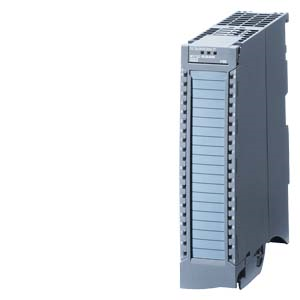

Siemens S7-1500 SM 522 Digital output modules DQ 8X230VAC/2A ST (TRIAC)
SKU: 6ES7522-5FF00-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
SIMATIC S7-1500 digital output module DQ 8x230 V AC/2 A ST with TRIAC and 8 channels in groups of 1 (2 A per group).
Front connectors (screw terminals or push-ins) must be purchased separately.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product type designation: DQ 8x230 V AC/2A ST (triac).
HW functional status: From FS01.
Firmware version: V2.3.0.
FW updates possible.
Width: 35 mm.
Height: 147 mm.
Depth: 129 mm.
Product function:
I&M data: I&M0 to I&M3.
Prioritized startup.
Operating mode:
DQ.
MSO.
Integrated operating cycle counter: FW V 2.3.0 or higher.
Output voltage / header:
Rated value (AC): 230 V; 120/230 V AC, 50/60 Hz.
Power:
Power available from the backplane bus: 0.9 W.
Power loss, type: 10.8 W.
Digital outputs:
Type of digital output: Triac.
Number of digital outputs: 8.
Current sinking.
Current sourcing.
Digital outputs, parameterizable.
No Short-circuit protection.
built-in fuse: 6.3 A melting fuse, slow-blow.
Size of motor starters according to NEMA, max: 5.
