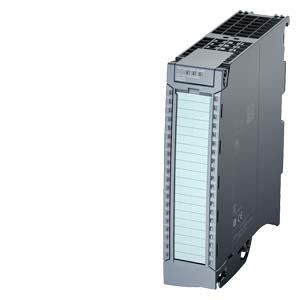

SIMATIC S7-1500 DQ 16x230VAC/1A ST (Triac) 35 mm

Specifications: Product type designation: DQ 16x230VAC/1A ST (Triac). HW functional status: From FS01. Firmware version: V1.3.0. FW updates possible. Operating mode: DQ, MSO, Integrated operating cycle counter (FW V1.1.0 or higher). Width: 35 mm. Height: 147 mm. Depth: 129 mm. Product function: I&M data: I&M0 to I&M3. Prioritized startup. Output voltage / header: Rated value (AC): 230 V; 120/230 V AC, 50/60 Hz. Power: Power available from the backplane bus: 1.2 W. Power loss, typ.: 11.1 W. Digital outputs: Type of digital output: Triac. Number of digital outputs: 16. Current sinking. Current sourcing. Digital outputs, parameterizable. Built-in fuse: 6.3 A melting fuse, slow blow. Size of motor starters according to NEMA, max.: 4. Switching capacity of the outputs: With resistive load, max: 1 A. On lamp load, max.: 50 W. Output voltage: For signal "1", min.: L1 (-1.5 V) at maximum output current; L1 (-8.5 V) at minimum output current. Output current: For signal "1" rated value: 1 A. For signal "1" permissible range, min.: 10 mA. For signal "1" permissible range, max.: 15 A; max. 1 AC cycle. For signal "0" residual current, max.: 2 mA. Output delay with resistive load: "0" to "1", max.: 1 AC cycle. "1" to "0", max.: 1 AC cycle. Parallel switching of two outputs: For redundant control of a load. Switching frequency: With resistive load, max.: 10 Hz. With inductive load, max.: 0.5 Hz. On lamp load, max.: 1 Hz. Total current of the outputs: Current per channel, max.: 1 A. Current per group, max.: 2 A. Current per module, max.: 10 A. Cable length: Shielded, max.: 1 000 m. Unshielded, max.: 600 m. Ambient temperature during operation: Horizontal installation, min.: -25 °C; From FS05. Horizontal installation, max.: 60 °C. Vertical installation, min.: -25 °C; From FS05. Vertical installation, max.: 40 °C.
