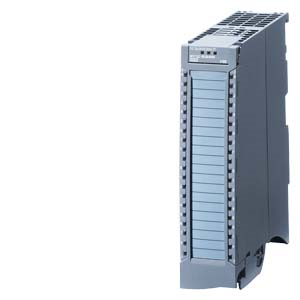

Siemens S7-1500 SM 522 Digital output modules DQ 8X230VAC/5A ST (RELAY)
SKU: 6ES7522-5HF00-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
SIMATIC S7-1500, digital output module DQ 8xAC 230V/5A ST; relay; 8 channels in groups of one; 5 A per group; diagnostics; substitute value: switching cycle counter for integrated relay; the module supports the safety-oriented shutdown of load groups up to SIL1 according to EN IEC 62061:2021 and Category 2/PL c according to EN ISO 13849-1:2015.
Front connectors (push-in or screw terminals) must be ordered individually.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product type designation: DQ 8x230 V AC/5 A ST (relay).
HW functional status: From FS02.
Firmware version: V2.1.0.
FW updates possible.
Width: 35 mm.
Height: 147 mm.
Depth: 129 mm.
Product function:
I&M data: I&M0 to I&M3.
Prioritized startup.
Operating mode:
DQ.
MSO.
Integrated operating cycle counter: FW V2.1.0 or higher.
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection.
Input current:
Current consumption, max: 80 mA.
Output voltage / header:
Rated value (AC): 230 V; 24 V DC to 120 V DC / 24 V AC to 230 V AC.
Power:
Power available from the backplane bus: 0.8 W.
Power loss, type: 5 W.
Digital outputs:
Type of digital output: Relays.
Number of digital outputs: 8.
Current sinking.
Current sourcing.
Digital outputs, parameterizable.
No Short-circuit protection.
Controlling digital input.
Size of motor starters according to NEMA, max: 5.
