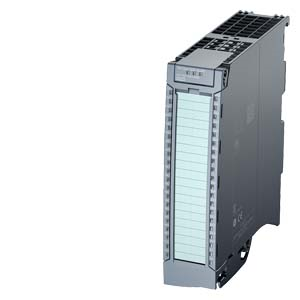

SIMATIC S7-1500 DQ 16x 230 V AC/2 A ST (relay) 35 mm
SKU: 6ES7522-5HH00-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC S7-1500, digital output module DQ 16x 230V AC/2A ST; 16 relay channels divided into 2 groups with 4 A each group; integrated relay switching cycle counter; diagnostics; replacement value: In accordance with EN IEC 62061:2021 and EN ISO 13849-1:2015, the module provides the safety-oriented shutdown of load groups up to SIL1 and Category 2 / PL c, respectively.
Front connectors (push-in or screw terminals) must be ordered individually.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product type designation: DQ 16x 230 V AC/2 A ST (relay).
HW functional status: From FS01.
Firmware version: V1.1.0.
FW updates possible.
Operating mode: DQ, MSO, Integrated operating cycle counter (FW V1.1.0 or higher).
Width: 35 mm.
Height: 147 mm.
Depth: 129 mm.
Product function:
I&M data: I&M0 to I&M3.
Prioritized startup.
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection.
Input current:
Current consumption, max.: 185 Ma.
Output voltage / header:
Rated value (AC): 230 V; 24 V DC to 120 V DC / 24 V AC to 230 V AC.
Power:
Power available from the backplane bus: 0.8 W.
Power loss, typ.: 5 W.
Digital outputs:
Type of digital output: Relays.
Number of digital outputs: 16.
Current sinking.
Current sourcing.
Digital outputs, parameterizable.
Controlling a digital input.
Size of motor starters according to NEMA, max.: 5.
Switching capacity of the outputs:
On lamp load, max.: 50 W (230 V AC), 5 W (24 V DC).
Output current:
For signal "1" rated value: 2 A.
For signal "1" permissible range, min.: 10 mA; 10 V.
For signal "1" permissible range, max.: 2 A; thermal continuous current.
For signal "0" residual current, max.: 0 mA.
Parallel switching of two outputs:
For logic links.
For redundant control of a load.
Switching frequency:
With resistive load, max.: 1 Hz.
With inductive load, max.: 0.5 Hz.
On lamp load, max.: 1 Hz.
Total current of the outputs:
Current per channel, max.: 2 A.
Current per group, max.: 4 A.
Current per module, max.: 32 A.
Relay outputs:
Number of relay outputs: 16.
Rated supply voltage of relay coil L+ (DC): 24 V.
Current consumption of relays (coil current of all relays), typ.: 150 mA.
External protection for relay outputs: Miniature circuit breaker B10 / B16.
Cable length:
Shielded, max.: 1 000 m.
Unshielded, max.: 600 m.
Ambient temperature during operation:
Horizontal installation, min.: -25 °C; From FS02.
Horizontal installation, max.: 60 °C.
Vertical installation, min.: -25 °C; From FS02.
Vertical installation, max.: 40 °C.
