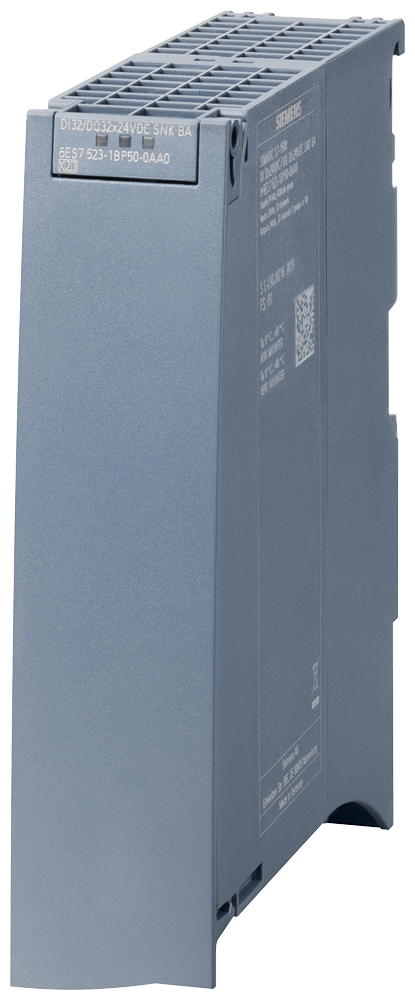

SIMATIC S7-1500 DI 32 x 24 V DC / DQ 32 x 24 V DC/0.3A SNK BA 35 mm

Specifications: Product type designation: DI 32 x 24 V DC / DQ 32 x 24 V DC/0.3A SNK BA. HW functional status: From FS01. Firmware version: V1.0.0. FW updates possible. Product function (I&M data): I&M0 to I&M3. Width: 35 mm. Height: 147 mm. Depth: 129 mm. Operating mode: DI. DQ. MSI. MSO. Engineering with: STEP 7 TIA Portal configurable/integrated from version: V16 with HSP 0319 / V17. STEP 7 configurable/integrated from version: V5.5 SP3. PROFIBUS from GSD version/GSD revision: V1.0 / V5.1. PROFINET from GSD version/GSD revision: V2.35. Supply voltage: Rated value (DC): 24 V. Permissible range, lower limit (DC): 19.2 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection: Through internal protection with 4 A per group. External protection for power supply lines (recommendation): input side: 24 V DC/4 A miniature circuit breaker with type B or C tripping characteristic; output side: 24 V DC/6 A miniature circuit breaker with type B tripping characteristic. Input current: Current consumption, max: 45 mA; without load. Output voltage / header: Rated value (DC): 24 V. Power: Power available from the backplane bus: 0.6 W. Power loss, typ.: 4.7 W. Digital inputs: Number of digital inputs: 32. Source/sink input. Input characteristic curve in accordance with IEC 61131, type 3. Number of simultaneously controllable inputs: 32. Horizontal installation — up to 60 °C, max.: 32. Vertical installation — up to 40 °C, max.: 16. Input voltage: Rated value (DC): 24 V. For signal "0": -5 ... +5 V (reference potential is COM). For signal "1": -11 ... -30 V; +11 ... +30 V (reference potential is COM). Input current: For signal "1", typ.: 2.7 Ma. Input delay (for rated value of input voltage) (for standard inputs): At "0" to "1", min: 3 MS. At "0" to "1", max: 4 MS. At "1" to "0", min: 3 MS. At "1" to "0", max: 4 MS. Cable length: Shielded, max.: 1 000 m. Unshielded, max.: 600 m. Digital outputs: Type of digital output: Transistor. Number of digital outputs: 32. Current sinking. Limitation of inductive shutdown voltage to: L+ (-53 V). Controlling a digital input. Switching capacity of the output: With resistive load, max: 0.3 A. On lamp load, max: 5 W. Load resistance range: Lower limit: 80 Ω. Upper limit: 10 k Ω. Output voltage: For signal "1", min: M+ (0.5 V). Output current: For signal "1" rated value: 0.3 A. For signal "1" permissible range, max: 0.3 A. For signal "0" residual current, max: 0.5 Ma. Parallel switching of two outputs: For logic links. For redundant control of a load. Switching frequency: With resistive load, max: 100 Hz. With inductive load, max: 0.5 Hz; According to IEC 60947-5-1, DC-13. On lamp load, max: 10 Hz. Total current of the outputs: Current per channel, max: 0.3 A. Current per group, max: 2 A. Current per module, max: 4 A. Total current of the outputs (per module): Horizontal installation — up to 60 °C, max: 4 A. Vertical installation — up to 40 °C, max: 4 A. Cable length: Shielded, max: 1 000 m. Unshielded, max: 600 m. Connectable encoders: 2-wire sensor. Permissible quiescent current (2-wire sensor), max: 1.5 Ma. Ambient temperature during operation: Horizontal installation, min: -30 °C. Horizontal installation, max: 60 °C. Vertical installation, min: -30 °C. Vertical installation, max: 40 °C. Altitude during operation relating to sea level: Installation altitude above sea level, max: 5 000 m.
