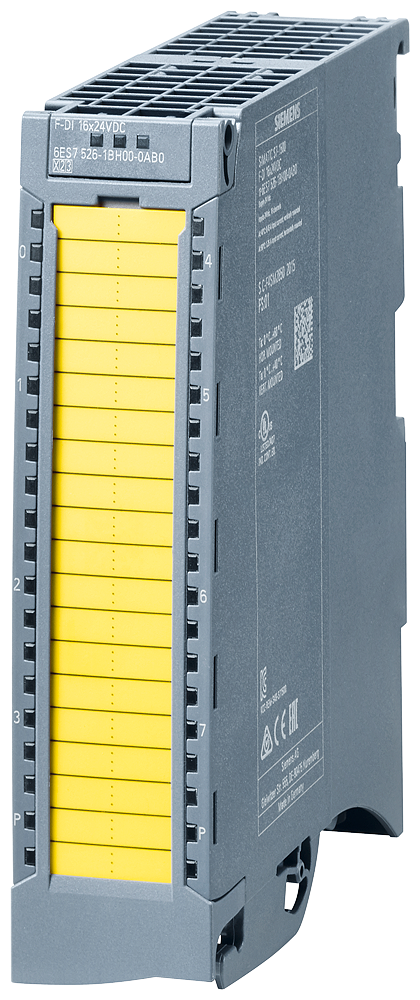

SIMATIC S7-1500 F-DI 16x24VDC

Specifications: Product type designation: F-DI 16x24VDC. FW updates possible. Product function (I&M data): I&M0 to I&M3. Width: 35 mm. Height: 147 mm. Depth: 129 mm. Operating mode: DI. Engineering with: STEP 7 TIA Portal configurable/integrated from version: V13 SP1 with HSP 0086. Supply voltage: Rated value (DC): 24 V. Permissible range, lower limit (DC): 19.2 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection. Input current: Current consumption (rated value): 50 mA; without load. Current consumption, max: 60 mA; without load. Encoder supply: Number of outputs: 4. Short-circuit protection: Electronic (response threshold 0.7 A to 1.8 A). 24 V encoder supply: 24 V: min. L+ (-1.5 V). Short-circuit protection. Output current, max: 300 mA; Max. 100 mA when mounted vertically. Power: Power available from the backplane bus: 0.9 W. Power loss, typ.: 4.6 W. Digital inputs: Number of digital inputs: 16. Source/sink input: P-reading. Input characteristic curve in accordance with IEC 61131, type 1. Input voltage: Rated value (DC): 24 V. For signal "0": -30 to +5 V. For signal "1": +15 to +30 V. Input current: For signal "1", typ.: 3.7 mA. Input delay (for rated value of input voltage) (for standard inputs): Parameterizable. At "0" to "1", min: 0.4 MS. At "0" to "1", max: 20 MS. At "1" to "0", min: 0.4 MS. At "1" to "0", max: 20 MS. Cable length: Shielded, max.: 1 000 m. Unshielded, max.: 600 m. Ambient temperature during operation: Horizontal installation, min: 0 °C. Horizontal installation, max: 60 °C. Vertical installation, min: 0 °C. Vertical installation, max: 40 °C.
