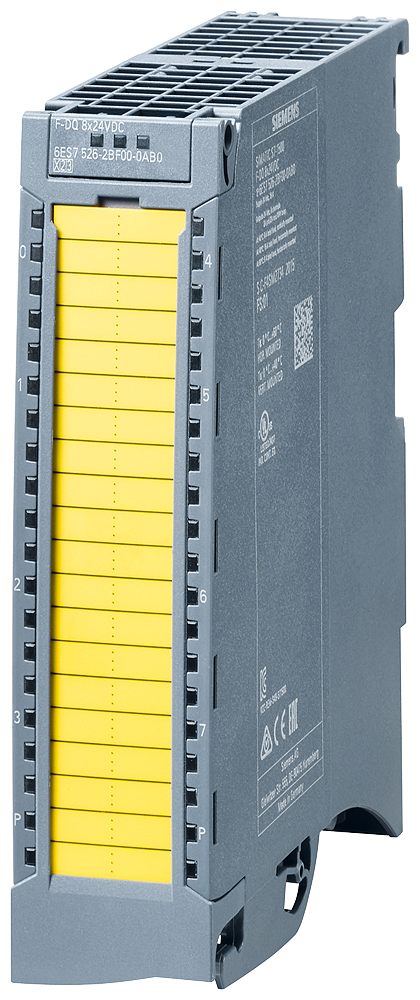

SIMATIC S7-1500 F-DQ 8x24VDC/2A PPM
SKU: 6ES7526-2BF00-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC S7-1500, F digital output module, F-DQ 8x 24 V DC 2A PPM PROFI safe, 35 mm width, up to PL E (ISO 13849-1)/SIL3 (IEC 61508).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product type designation: F-DQ 8x24VDC/2A PPM.
FW updates possible.
Product function (I&M data): I&M0 to I&M3.
Width: 35 mm.
Height: 147 mm.
Depth: 129 mm.
Operating mode: DI.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V13 SP1 with HSP 0086.
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection.
Input current:
Current consumption (rated value): 110 mA; without load.
Current consumption, max: 130 mA; without load.
Output voltage / header:
Rated value (DC): 24 V.
Power:
Power available from the backplane bus: 0.8 W.
Power loss, typ.: 11 W.
Digital outputs:
Number of digital outputs: 8.
Source/sink input.
Current sourcing.
Short-circuit protection.
Open-circuit detection.
Response threshold, typ.: 8 Ma.
Overload protection.
Response threshold, typ.: 2.9 A.
Limitation of inductive shutdown voltage to: PM-switching: -24 V + (-47 V), PP-switching: -24V.
Controlling a digital input: digital output, according to IEC 61131-2, type 2.
Switching capacity of the outputs:
With resistive load, max: 2 A.
On lamp load, max: 10 W.
Load resistance range:
Lower limit: 12 Ω.
Upper limit: 2 000 Ω.
Output voltage:
For signal "1", min.: 24 V; L+ (-0.5 V).
Output current:
For signal "1" rated value: 2 A.
For signal "0" residual current, max.: 0.5 mA; Current-sourcing, or current sourcing and sinking switches individually, current sinking: max. 1 Ma.
Switching frequency:
With resistive load, max: 30 Hz.
With inductive load, max: 0.1 Hz.
On lamp load, max: 10 Hz.
Total current of the outputs:
Current per channel, max: 2 A.
Total current of the outputs (per module):
Horizontal installation — up to 40 °C, max.: 16 A.
Horizontal installation — up to 60 °C, max.: 8 A.
Vertical installation — up to 40 °C, max.: 8 A.
Cable length:
Shielded, max.: 1 000 m.
Unshielded, max.: 500 m.
Ambient temperature during operation:
Horizontal installation, min: 0 °C.
Horizontal installation, max: 60 °C.
Vertical installation, min: 0 °C.
Vertical installation, max: 40 °C.
