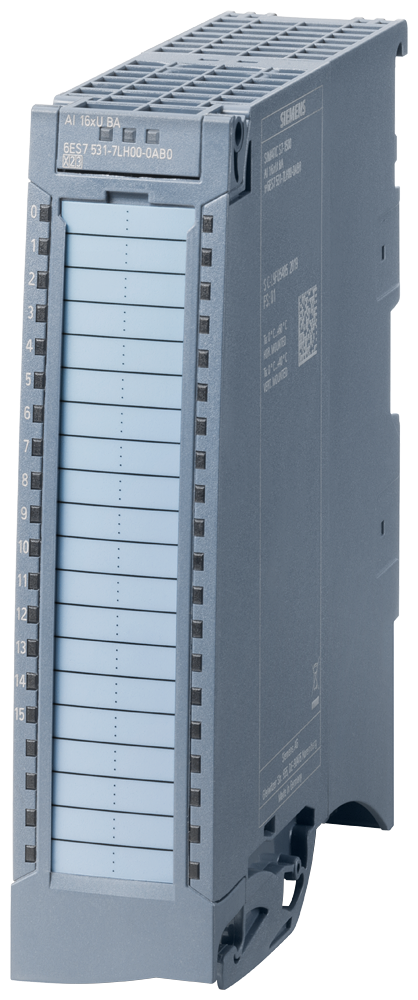

SIMATIC S7-1500 AI 16xU BA 35 mm
SKU: 6ES7531-7LH00-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC S7-1500, Analog input module AI 16xI BA, 16-bit resolution accuracy 0.5%, 16 channels in groups of 16, common mode voltage 4 V DC, diagnostics, hardware interrupts; delivery includes infeed element, shield bracket, and shield terminal; front connector (screw terminals or push-in) must be ordered separately.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product type designation: AI 16xI BA.
HW functional status: From FS01.
Firmware version: V1.0.0.
FW updates possible.
Product function (I&M data): I&M0 to I&M3.
Operating mode: MSI.
Cable length (shielded, max.): 200 m.
Width: 35 mm.
Height: 147 mm.
Depth: 129 mm.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V16 with HSP 312 / V17.
STEP 7 configurable/integrated from version: V5.5 SP3.
PROFIBUS from GSD version/GSD revision: V1.0 / V5.1.
PROFINET from GSD version/GSD revision: V2.3.
CiR - Configuration in RUN:
Reparameterization possible in RUN.
Power:
Power available from the backplane bus: 0.85 W.
Power loss, typ.: 0.75 W.
Analog inputs:
Number of analog inputs: 16.
For current measurement: 16.
Permissible input voltage for voltage input (destruction limit), max.: 12 V; 12 V continuous, 30 V for max. 1 s.
Input ranges (rated values), currents:
1 V to 5 V — Input resistance (1 V to 5 V): 10 MΩ.
-1 V to +1 V — Input resistance (-1 V to +1 V): 10 MΩ.
-10 V to +10 V — Input resistance (-10 V to +10 V): 10 MΩ.
-5 V to +5 V — Input resistance (-5 V to +5 V): 10 MΩ.
Analog value generation for the inputs:
Measurement principle: integrating.
Integration and conversion time/resolution per channel:
Resolution with overrange (bit including sign), max.: 16 bits.
Integration time, parameterizable.
Integration time (MS): 2,5 / 16,67 / 20 / 100 MS.
Basic conversion time, including integration time (MS): 10 / 24 / 27 / 107 MS.
Additional conversion time for wire-break monitoring: 4 MS (to be considered for 1 to 5 V measurement).
Interference voltage suppression for interference frequency f1 in Hz: 400 / 60 / 50 / 10 Hz.
Smoothing of measured values:
Parameterizable.
Step: None.
Step: low.
Step: Medium.
Step: High.
Connection of signal encoders:
For voltage measurement.
Ambient temperature during operation:
Horizontal installation, min.: -30 °C.
Horizontal installation, max.: 60 °C.
Vertical installation, min.: -30 °C.
Vertical installation, max.: 40 °C.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 5 000 m; Restrictions for installation altitudes > 2000 m.
