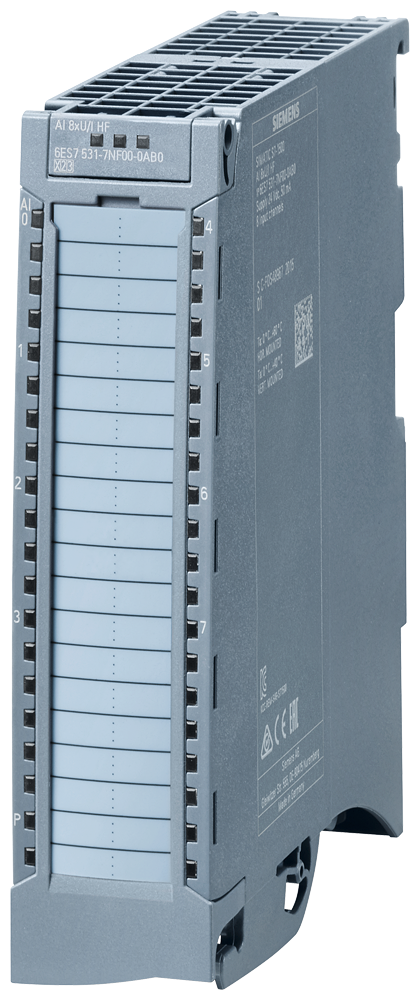

SIMATIC S7-1500 AI 8xU/I HF 35 mm

General information: Product type designation: AI 8xU/I HF. HW functional status: From FS01. Firmware version: V1.1.0. FW update possible: Yes. Product function: I&M data: Yes; I&M0 to I&M3. Isochronous mode: No. Prioritized startup: Yes. Measuring range scalable: No. Scalable measured values: Yes. Adjustment of measuring range: Yes. Engineering with: STEP 7 TIA Portal configurable/integrated from version: V14 /. STEP 7 configurable/integrated from version: V5.5 SP3 /. PROFIBUS from GSD version/GSD revision: V1.0 / V5.1. PROFINET from GSD version/GSD revision: V2.3 /. Operating mode: Oversampling: No. MSI: Yes. CiR - Configuration in RUN: Reparameterization possible in RUN: Yes. Calibration possible in RUN: Yes. Supply voltage: Rated value (DC): 24 V. permissible range, lower limit (DC): 19.2 V. permissible range, upper limit (DC): 28.8 V. Reverse polarity protection: Yes. Input current: Current consumption, max.: 50 mA; with 24 V DC supply. Power: Power available from the backplane bus: 0.85 W. Power loss: Power loss, typ.: 1.9 W. Analog inputs: Number of analog inputs: 8. For current measurement: 8. For voltage measurement: 8. permissible input voltage for voltage input (destruction limit), max.: 28.8 V. permissible input current for current input (destruction limit), max.: 40 mA. Input ranges (rated values), voltages: 0 to +5 V: No. 0 to +10 V: No. 1 V to 5 V: Yes. Input resistance (1 V to 5 V): 100 kΩ. -10 V to +10 V: Yes. Input resistance (-10 V to +10 V): 100 kΩ. -2.5 V to +2.5 V: Yes. Input resistance (-2.5 V to +2.5 V): 100 kΩ. -25 mV to +25 mV: No. -250 mV to +250 mV: No. -5 V to +5 V: Yes. Input resistance (-5 V to +5 V): 100 kΩ. -50 mV to +50 mV: No. -500 mV to +500 mV: No. -80 mV to +80 mV: No. Input ranges (rated values), currents: 0 to 20 mA: Yes. Input resistance (0 to 20 mA): 25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC. -20 mA to +20 mA: Yes. Input resistance (-20 mA to +20 mA): 25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC. 4 mA to 20 mA: Yes. Input resistance (4 mA to 20 mA): 25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC. Input ranges (rated values), thermocouples: Type B: No. Type C: No. Type E: No. Type J: No. Type K: No. Type L: No. Type N: No. Type R: No. Type S: No. Type T: No. Type TXK/TXK(L) to GOST: No. Input ranges (rated values), resistance thermometer: Cu 10: No. Cu 10 according to GOST: No. Cu 50: No. Cu 50 according to GOST: No. Cu 100: No. Cu 100 according to GOST: No. Ni 10: No. Ni 10 according to GOST: No. Ni 100: No. Ni 100 according to GOST: No. Ni 1000: No. Ni 1000 according to GOST: No. LG-Ni 1000: No. Ni 120: No. Ni 120 according to GOST: No. Ni 200: No. Ni 200 according to GOST: No. Ni 500: No. Ni 500 according to GOST: No. Pt 10: No. Pt 10 according to GOST: No. Pt 50: No. Pt 50 according to GOST: No. Pt 100: No. Pt 100 according to GOST: No. Pt 1000: No. Pt 1000 according to GOST: No. Pt 200: No. Pt 200 according to GOST: No. Pt 500: No. Pt 500 according to GOST: No. Input ranges (rated values), resistors: 0 to 150 ohms: No. 0 to 300 ohms: No. 0 to 600 ohms: No. 0 to 3000 ohms: No. 0 to 6000 ohms: No. PTC: No. Cable length: shielded, max.: 800 m. Analog value generation for the inputs: Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max.: 24 bit; When using the function "Scaling of the measured values" or "Measuring range adaptation" (32 bit REAL format); 16 bit when using the S7 format (16 bit INTEGER). Integration time, parameterizable: Yes. Integration time (ms): Fast mode: 2.5 / 16.67 / 20 / 100 ms, standard mode: 7.5 / 50 / 60 / 300 ms. Basic conversion time, including integration time (ms): Fast mode: 4 / 18 / 22 / 102 ms; Standard mode: 9 / 52 / 62 / 302 ms. Interference voltage suppression for interference frequency f1 in Hz: 400 / 60 / 50 / 10 Hz. Basic execution time of the module (all channels released): Corresponds to the channel with the highest basic conversion time. Smoothing of measured values: parameterizable: Yes. Step: None: Yes. Step: low: Yes. Step: Medium: Yes. Step: High: Yes. Encoder: Connection of signal encoders: for voltage measurement: Yes. for current measurement as 2-wire transducer: Yes; with external transmitter supply. for current measurement as 4-wire transducer: Yes. for resistance measurement with two-wire connection: No. for resistance measurement with three-wire connection: No. for resistance measurement with four-wire connection: No. Errors/accuracies: Linearity error (relative to input range), (+/-): 0.02 %. Temperature error (relative to input range), (+/-): 0.005 %/K. Crosstalk between the inputs, max.: -80 dB. Repeat accuracy in steady state at 25 °C (relative to input range), (+/-): 0.02 %. note regarding accuracy: at temperatures below 0 °C, the figures for operating error and temperature error are doubled. Operational error limit in overall temperature range: Voltage, relative to input range, (+/-): 0.1 %. Current, relative to input range, (+/-): 0.1 %. Basic error limit (operational limit at 25 °C): Voltage, relative to input range, (+/-): 0.05 %. Current, relative to input range, (+/-): 0.05 %. Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency: Series mode interference (peak value of interference < rated value of input range), min.: 80 dB; in the Standard operating mode, 40 dB in the Fast operating mode. Common mode voltage, max.: 60 V DC/30 V AC. Common mode interference, min.: 80 dB. Interrupts/diagnostics/status information: Diagnostics function: Yes. Alarms: Diagnostic alarm: Yes. Limit value alarm: Yes; two upper and two lower limit values in each case. Diagnoses: Monitoring the supply voltage: Yes. Wire-break: Yes; only for 1 ... 5 V and 4 ... 20 mA. Overflow/underflow: Yes. Diagnostics indication LED: RUN LED: Yes; green LED. ERROR LED: Yes; red LED. Monitoring of the supply voltage (PWR-LED): Yes; green LED. Channel status display: Yes; green LED. for channel diagnostics: Yes; red LED. for module diagnostics: Yes; red LED. Potential separation: Potential separation channels: between the channels: Yes. between the channels, in groups of: 1. between the channels and backplane bus: Yes. between the channels and the power supply of the electronics: Yes. Permissible potential difference: between different circuits: 60 V DC/30 V AC; insulation rated for 120 V AC basic insulation: between the channels and the supply voltage L+; between the channels and the backplane bus; between the channels. Isolation: Isolation tested with: 2 000 V DC between the channels and the supply voltage L+; 2 000 V DC between the channels and the backplane bus; 2 000 V DC between the channels; 707 V DC (type test) between the supply voltage L+ and the backplane bus. product functions / security / header: signed firmware update: No. data integrity: No. Ambient conditions: Ambient temperature during operation: horizontal installation, min.: -30 °C; From FS02. horizontal installation, max.: 60 °C. vertical installation, min.: -30 °C; From FS02. vertical installation, max.: 40 °C. Dimensions: Width: 35 mm. Height: 147 mm. Depth: 129 mm. Weights: Weight, approx.: 280 g.
