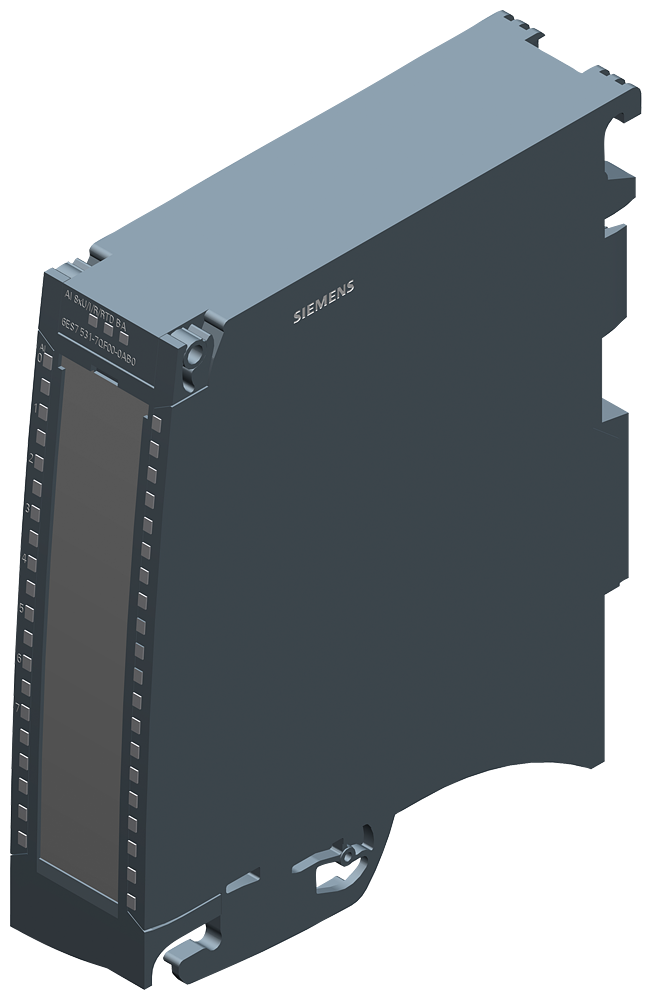

SIMATIC S7-1500 AI 8xU/I/R/RTD BA 35 mm

General information: Product type designation: AI 8xU/I/R/RTD BA. HW functional status: From FS01. Firmware version: V1.1.0. FW update possible: Yes. Product function: I&M data: Yes; I&M0 to I&M3. Prioritized startup: No. Engineering with: STEP 7 TIA Portal configurable/integrated from version: V15.1 / V16. STEP 7 configurable/integrated from version: V5.5 SP3 /. PROFIBUS from GSD version/GSD revision: V1.0 / V5.1. PROFINET from GSD version/GSD revision: V2.3 /. Operating mode: Oversampling: No. MSI: Yes. CiR - Configuration in RUN: Reparameterization possible in RUN: Yes. Calibration possible in RUN: No. Power: Power available from the backplane bus: 0.85 W. Power loss: Power loss, typ.: 0.9 W. Analog inputs: Number of analog inputs: 8. For current measurement: 8. For voltage measurement: 8. For resistance/resistance thermometer measurement: 8. permissible input voltage for voltage input (destruction limit), max.: 12 V; 12 V continuous, 30 V for max. 1 s. permissible input current for current input (destruction limit), max.: 40 mA. Constant measurement current for resistance-type transmitter, typ.: 230 ... 370 µA. Technical unit for temperature measurement adjustable: Yes; °C/°F/K. Input ranges (rated values), voltages: 0 to +5 V: No. 0 to +10 V: No. 1 V to 5 V: Yes. Input resistance (1 V to 5 V): 10 MΩ. -1 V to +1 V: Yes. Input resistance (-1 V to +1 V): 10 MΩ. -2.5 V to +2.5 V: Yes. Input resistance (-10 V to +10 V): 10 MΩ. -2.5 V to +2.5 V: No. -25 mV to +25 mV: No. -250 mV to +250 mV: No. -5 V to +5 V: Yes. Input resistance (-5 V to +5 V): 10 MΩ. -50 mV to +50 mV: Yes. Input resistance (-50 mV to +50 mV): 10 MΩ. -500 mV to +500 mV: Yes. Input resistance (-50 mV to +50 mV): 10 MΩ. -80 mV to +80 mV: No. Input ranges (rated values), currents: 0 to 20 mA: Yes. Input resistance (0 to 20 mA): 25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC. -20 mA to +20 mA: Yes. Input resistance (-20 mA to +20 mA): 25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC. 4 mA to 20 mA: Yes. Input resistance (4 mA to 20 mA): 25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC. Input ranges (rated values), thermocouples: Type B: No. Type C: No. Type E: No. Type J: No. Type K: No. Type L: No. Type N: No. Type R: No. Type S: No. Type T: No. Type U: No. Type TXK/TXK(L) to GOST: No. Input ranges (rated values), resistance thermometer: Cu 10: No. Cu 10 according to GOST: No. Cu 50: No. Cu 50 according to GOST: No. Cu 100: No. Cu 100 according to GOST: No. Ni 10: No. Ni 10 according to GOST: No. Ni 100: Yes; Standard/climate. Input resistance (Ni 100): 10 MΩ. Ni 100 according to GOST: No. Ni 1000: Yes; Standard/climate. Input resistance (Ni 1000): 10 MΩ. Ni 1000 according to GOST: No. LG-Ni 1000: Yes; Standard/climate. Input resistance (LG-Ni 1000): 10 MΩ. Ni 120: No. Ni 120 according to GOST: No. Ni 200: No. Ni 200 according to GOST: No. Ni 500: No. Ni 500 according to GOST: No. Pt 10: No. Pt 10 according to GOST: No. Pt 50: No. Pt 50 according to GOST: No. Pt 100: Yes; Standard/climate. Input resistance (Pt 100): 10 MΩ. Pt 100 according to GOST: No. Pt 1000: Yes; Standard/climate. Input resistance (Pt 1000): 10 MΩ. Pt 1000 according to GOST: No. Pt 200: No. Pt 200 according to GOST: No. Pt 500: No. Pt 500 according to GOST: No. Input ranges (rated values), resistors: 0 to 150 ohms: No. 0 to 300 ohms: No. 0 to 600 ohms: Yes. Input resistance (0 to 600 ohms): 10 MΩ. 0 to 3000 ohms: No. 0 to 6000 ohms: Yes. Input resistance (0 to 6000 ohms): 10 MΩ. PTC: Yes. Input resistance (PTC): 10 MΩ. Cable length: shielded, max.: 200 m; 50 m at 50 mV. Analog value generation for the inputs: Measurement principle: integrating. Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max.: 16 bit. Integration time, parameterizable: Yes. Integration time (ms): 2,5 / 16,67 / 20 / 100 ms. Basic conversion time, including integration time (ms): 10 / 24 / 27 / 107 ms. additional conversion time for wire-break monitoring: 4 ms (to be considered in R/RTD/U 1 to 5 V measurement). additional conversion time for resistance measurement: 8 ms. Interference voltage suppression for interference frequency f1 in Hz: 400 / 60 / 50 / 10 Hz. Smoothing of measured values: parameterizable: Yes. Step: None: Yes. Step: low: Yes. Step: Medium: Yes. Step: High: Yes. Encoder: Connection of signal encoders: for voltage measurement: Yes. for current measurement as 2-wire transducer: Yes; with external supply. for current measurement as 4-wire transducer: Yes. for resistance measurement with two-wire connection: Yes; Only for PTC. for resistance measurement with three-wire connection: Yes; All measuring ranges except PTC; internal compensation of the cable resistances. Errors/accuracies: Linearity error (relative to input range), (+/-): 0.01 %. Temperature error (relative to input range), (+/-): 0.006 %/K. Crosstalk between the inputs, max.: -50 dB. Repeat accuracy in steady state at 25 °C (relative to input range), (+/-): 0.01 %. Operational error limit in overall temperature range: Voltage, relative to input range, (+/-): 0.5 %. Current, relative to input range, (+/-): 0.5 %. Resistance, relative to input range, (+/-): 0.5 %. Resistance thermometer, relative to input range, (+/-): Ptxxx Standard: ±1.2 K, Ptxxx Climate: ±0.8 K, Nixxx Standard: ±0.8 K, Nixxx Climate: ±0.8 K. Basic error limit (operational limit at 25 °C): Voltage, relative to input range, (+/-): 0.3 %. Current, relative to input range, (+/-): 0.3 %. Resistance, relative to input range, (+/-): 0.3 %. Resistance thermometer, relative to input range, (+/-): Ptxxx Standard: ±1.0 K, Ptxxx Climate: ±0.5 K, Nixxx Standard: ±0.5 K, Nixxx Climate: ±0.5 K. Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency: Series mode interference (peak value of interference < rated value of input range), min.: 40 dB. Common mode voltage, max.: 4 V. Common mode interference, min.: 60 dB. Interrupts/diagnostics/status information: Diagnostics function: Yes. Alarms: Diagnostic alarm: Yes. Limit value alarm: Yes; two upper and two lower limit values in each case. Diagnoses: Monitoring the supply voltage: No. Wire-break: Yes; Only for 1 ... 5 V, 4 ... 20 mA, R, and RTD. Short-circuit: No. Group error: No. Overflow/underflow: Yes. Diagnostics indication LED: RUN LED: Yes; green LED. ERROR LED: Yes; red LED. MAINT LED: No. Monitoring of the supply voltage (PWR-LED): No. Channel status display: Yes; green LED. for channel diagnostics: Yes; red LED. for module diagnostics: Yes; red LED. Potential separation: Potential separation channels: between the channels: No. between the channels, in groups of: 8. between the channels and backplane bus: Yes. Permissible potential difference: between the inputs (UCM): 8 V DC. Between the inputs and MANA (UCM): 4 V DC. Isolation: Isolation tested with: 707 V DC (type test). product functions / security / header: signed firmware update: No. data integrity: No. Ambient conditions: Ambient temperature during operation: horizontal installation, min.: -30 °C; From FS05. horizontal installation, max.: 60 °C. vertical installation, min.: -30 °C; From FS05. vertical installation, max.: 40 °C. Altitude during operation relating to sea level. Installation altitude above sea level, max. 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual. Dimensions: Width: 35 mm. Height: 147 mm. Depth: 129 mm. Weights: Weight, approx.: 250 g.
