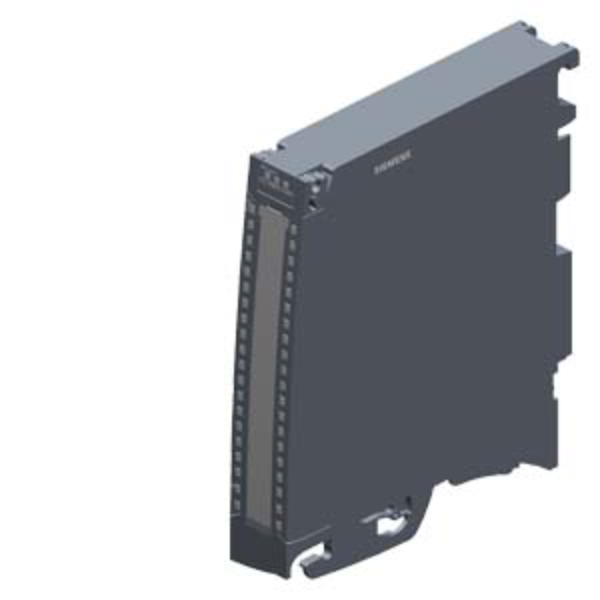

Siemens S7-1500 SM 532 Analog output modules AQ 2XU/I ST
SKU: 6ES7532-5NB00-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This module provides 2 analog output channels, configurable for voltage or current signals.
With 16-bit resolution, diagnostics, and substitute value support, it’s ideal for actuator control, process feedback, and signal interfacing in demanding environments.
It also supports safety-oriented shutdown up to SIL 2 / PL d, making it suitable for critical applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Channels: 2 (grouped in sets of 2).
Signal Types Supported: Voltage, Current.
Resolution: 16-bit.
Accuracy: ±0.3% (typical); ±0.2% at 25 °C.
Output Voltage Ranges: 0–10 V, 1–5 V, ±10 V.
Output Current Ranges: 0–20 mA, ±20 mA, 4–20 mA.
Short-Circuit Protection: Yes (voltage outputs only).
Wire-Break Detection: Yes (current outputs only).
Conversion Time: 0.5 ms per channel.
Settling Time: 1.5–2.5 ms depending on load type.
Load Impedance: ≥1 kΩ (voltage); ≤750 Ω (current).
Cable Length: 800 m (current); 200 m (voltage).
Power Loss: ~2.7 W.
Backplane Bus Consumption: ~0.65 W.
Dimensions (W×H×D): 25 × 147 × 129 mm.
Weight: ~200 g.
Environmental & Compliance:
Operating Temp: –30 °C to +60 °C (horizontal); –30 °C to +40 °C (vertical).
Altitude: Up to 5000 m.
Humidity: 100% RH with condensation/frost.
Isolation: 707 V DC (type test).
Safety Ratings:
SIL 2 (IEC 62061).
PL d, Cat. 3 (ISO 13849-1).
Approvals: CE, UL, ATEX, IECEx, DNV, FM, CCC, RCM.
Eco Profile: Siemens EcoTech certified.
Global Warming Potential: 37.6 kg CO₂ eq (lifecycle).
