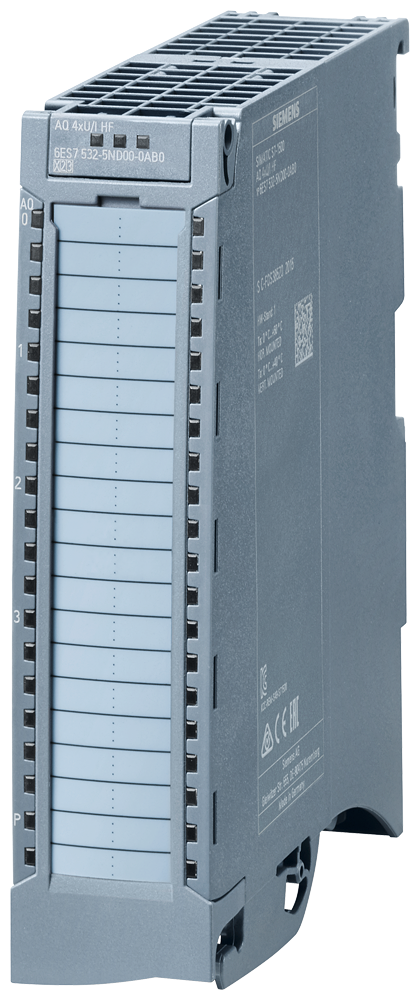

SIMATIC S7-1500 AQ 4xU/I HF 35 mm Incl. power supply element
SKU: 6ES7532-5ND00-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SIMATIC S7-1500 analogue output module, AQ 4xU/I HF, can support safety-oriented shutdown of load groups up to SIL2 in accordance with EN IEC 62061:2021 and Category 3 / PL d in accordance with EN ISO 13849-1:2015.
It has four channels grouped into one and a common mode voltage of 30 V AC/60 V DC.
The module also includes substitute values and isochronous mode.
Delivery includes shielding bracket, infeed element, and shield terminal; the front connector (push-in or screw terminals) must be ordered separately.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product type designation: AQ 4xU/I HF.
HW functional status: From FS01.
Firmware version: V1.1.0.
FW updates possible.
Operating mode: MSO.
Cable length (shielded, max.): 800 m; for current, 200 m for voltage.
Width: 35 mm.
Height: 147 mm.
Depth: 129 mm.
Product function:
I&M data: I&M0 to I&M3.
Isochronous mode.
Prioritized startup.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V14.
STEP 7 configurable/integrated from version: V5.5 SP3.
PROFIBUS from GSD version/GSD revision: V1.0 / V5.1.
PROFINET from GSD version/GSD revision: V2.3.
CiR - Configuration in RUN:
Reparameterization possible in RUN.
Calibration possible in RUN.
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 20.4 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection.
Input current:
Current consumption, max: 160 mA; with 24 V DC supply.
Power:
Power available from the backplane bus: 0.95 W.
Power loss, typ.: 5 W.
Analog outputs:
Number of analog outputs: 4.
Voltage output, short-circuit protection.
Voltage output, short-circuit current, max.: 24 mA.
Current output, no-load voltage, max.: 22 V.
Cycle time (all channels), min.: 125 µs; independent of number of activated channels.
Output ranges, voltage:
0 to 10 V.
1 V to 5 V.
-10 V to +10 V.
Output ranges, current:
0 to 20 mA.
-20 mA to +20 mA.
4 mA to 20 mA.
Connection of actuators:
For voltage output two-wire connection.
For voltage output four-wire connection.
For current output two-wire connection.
Load impedance (in rated range of output):
With voltage outputs, min.: 1 kΩ; 0.5 k Ohm at 1 to 5 V.
With voltage outputs, capacitive load, max.: 1 µF.
With current outputs, max.: 750 Ω.
With current outputs, inductive load, max.: 10 MH.
Outputs integration and conversion time/resolution per channel:
Resolution with overrange (bit including sign), max: 16 bits.
Conversion time (per channel): 125 µs; independent of number of activated channels.
Settling time:
For resistive load: 0.2 MS.
For capacitive load: 1.8 MS.
For inductive load: 2 MS.
Ambient temperature during operation:
Horizontal installation, min.: -25 °C; From FS02.
Horizontal installation, max.: 60 °C.
Vertical installation, min.: -25 °C; From FS02.
Vertical installation, max.: 40 °C.
