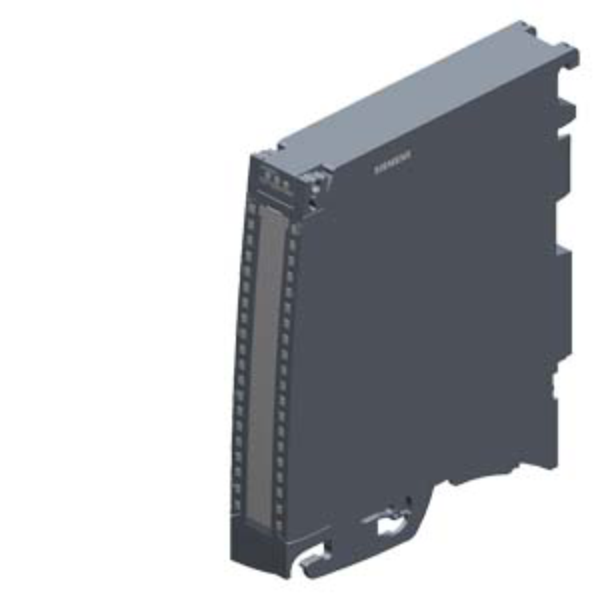

Siemens S7-1500 SM 534 Analog input/output module
SKU: 6ES7534-7QE00-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This technology module offers 8 digital channels, each configurable as input or output, with integrated timer functionality.
It is optimized for event-driven control, pulse generation, and time-based logic, making it ideal for packaging, material handling, and machine sequencing applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Channels: 8 (configurable as DI or DQ).
Signal Type: 24 VDC (IEC 61131 Type 1).
Input Delay: 0.05–20 ms (parameterizable).
Output Current: Max 0.5 A per channel.
Total Output Current: Max 3 A per group.
Timer Functions: Pulse, delay, edge detection, frequency.
Timer Resolution: 1 µs.
Timer Range: Up to 4.29 billion µs (≈71 minutes).
Switching Frequency: Up to 1 kHz (resistive); 10 Hz (inductive).
Diagnostics: Channel diagnostics, wire break, short.
Power Loss: ~3.5 W.
Backplane Bus Consumption: ~1.1 W.
Dimensions (W×H×D): 35 × 147 × 129 mm.
Weight: ~300 g.
Environmental & Compliance:
Operating Temp: –30 °C to +60 °C.
Humidity: 100% RH with condensation/frost.
Altitude: Up to 5000 m.
Isolation Test Voltage: 707 V DC.
Protection Class: IP20.
Approvals: CE, UL, ATEX, IECEx, DNV, FM, CCC, RCM.
Global Warming Potential: ~37.6 kg CO₂ eq (lifecycle).
