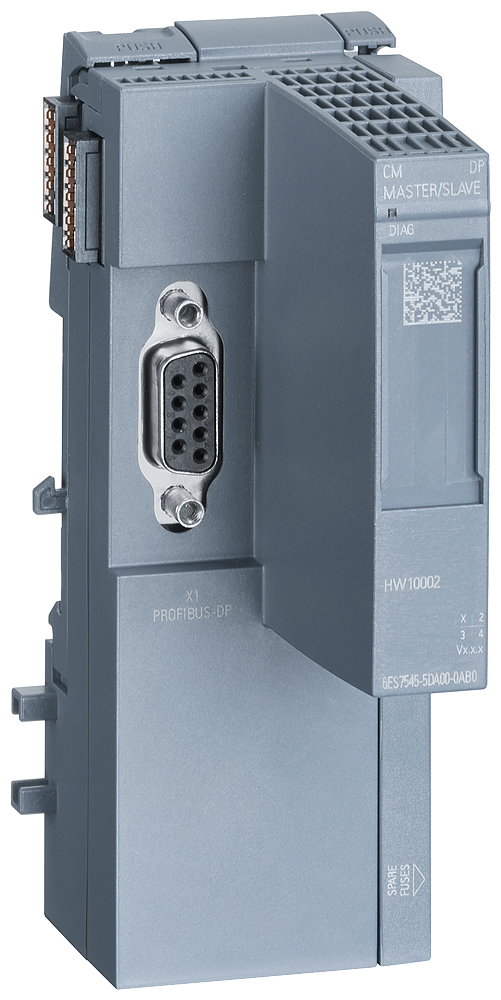

SIMATIC ET 200SP CM PROFIBUS DP Master/slave
SKU: 6ES7545-5DA00-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC DP, CM PROFIBUS DP for ET 200SP CPU module with PROFIBUS DP interface (9-pole D-sub socket) as DP master for 125 DP slaves.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection.
Interface types:
SIMATIC communication: S7 routing, Data record routing.
Ambient temperature during operation:
Horizontal installation, min: -25 °C; No condensation.
Horizontal installation, max: 60 °C.
Vertical installation, min: -25 °C; No condensation.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 5 000 m; Restrictions for installation altitudes > 2000 m.
Width: 35 mm.
Height: 117 mm.
Depth: 75 mm.
