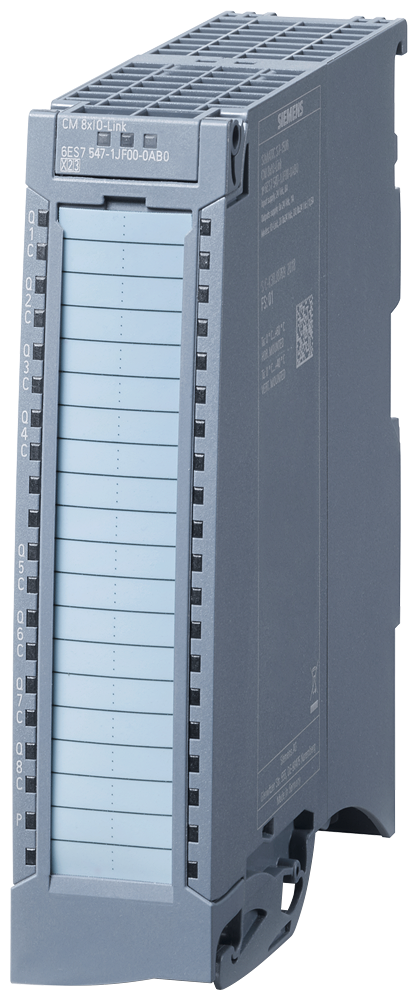

SIMATIC S7-1500 CM 8xIO-Link
SKU: 6ES7547-1JF00-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
S7-1500, CM 8xIO-Link communication module. IO-Link Master Version 1.1.
Front connector (screw terminal or push-in) must be bought separately.
General information:
Product type designation: CM 8xIO-Link.
HW functional status: FS04.
Firmware version: V1.0.2.
FW update possible: Yes.
Product function:
I&M data: Yes; I&M0 to I&M3.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V15.1 with HSP 274.
STEP 7 configurable/integrated from version: Configurable via GSD file.
PROFIBUS from GSD version/GSD revision: GSD as of Revision 5.
PROFINET from GSD version/GSD revision: GSDML V2.34.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 20.4 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes.
Input current:
Current consumption, max.: 50 mA; without load.
Power:
Power available from the backplane bus: 1.1 W.
Buy currently uses Select Automation shop pricing and checkout.
Encoder supply:
Number of outputs: 8.
Output current:
Rated value: 1 A; 4 A total current per module.
24 V encoder supply:
Short-circuit protection: Yes; per channel, electronic.
IO-Link:
Number of ports: 8.
of which simultaneously controllable: 8.
IO-Link protocol: 1.0 Yes.
IO-Link protocol: 1.1 Yes.
Cycle time, min.: 2 ms.
Size of process data, input per port: 33 byte; max.
Size of process data, input per module: 240 byte; max.
Size of process data, output per port: 32 byte; max.
Size of process data, output per module: 240 byte; max.
Memory size for device parameter: 2 kbyte; for each port.
Master backup: Yes.
Configuration without S7-PCT: Yes.
Cable length unshielded, max.: 20 m.
Operating modes:
IO-Link: Yes.
DI: Yes.
DQ: No.
Time Based IO:
TIO IO-Link IN: No.
TIO IO-Link OUT: No.
TIO IO-Link IN/OUT: No.
Connection of IO-Link devices:
Port type A: Yes.
Port type B: Yes; 24 V DC via external terminal.
Interrupts/diagnostics/status information:
Alarms:
Diagnostic alarm: Yes; The port diagnosis is available in the IO-Link mode only.
Diagnoses:
Monitoring the supply voltage: Yes.
Wire-break: Yes.
Short-circuit: Yes.
Group error: Yes.
Diagnostics indication LED:
Monitoring of the supply voltage (PWR-LED): Yes; green LED.
Channel status display: Yes; green LED.
for channel diagnostics: Yes; red LED.
for module diagnostics: Yes; red LED.
Potential separation:
Potential separation channels:
between the channels: No.
between the channels and backplane bus: Yes.
Isolation:
Isolation tested with: 707 V DC (type test).
Ambient conditions:
Ambient temperature during operation:
horizontal installation, min.: -30 °C.
horizontal installation, max.: 60 °C; Observe derating.
vertical installation, min.: -30 °C.
vertical installation, max.: 40 °C; Observe derating.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual.
Dimensions:
Width: 35 mm.
Height: 147 mm.
Depth: 129 mm.
