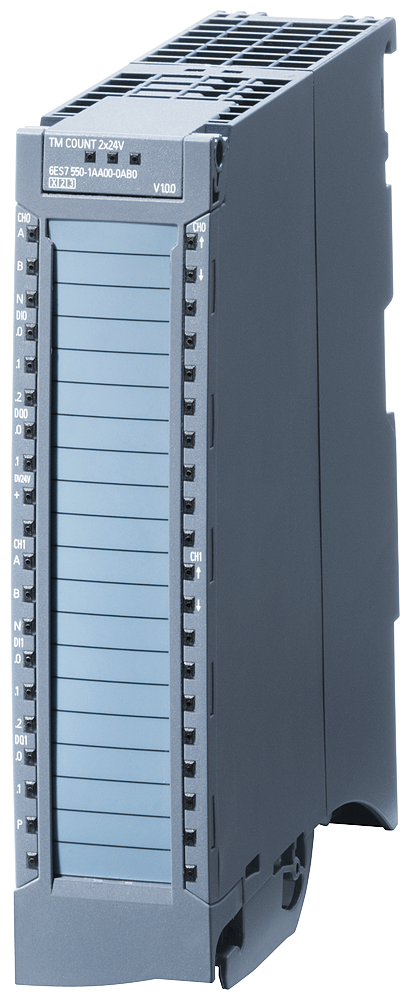

SIMATIC S7-1500 TM Count 2x24V 2 channels, up to 200 kHz

Specifications: Product type designation: TM Count 2x24V. Firmware version: V2.0. FW updates possible. Product function (I&M data): I&M0 to I&M3 and Isochronous mode. Width: 35 mm. Height: 147 mm. Depth: 129 mm. Engineering with: STEP 7 TIA Portal configurable/integrated from version: V16 with HSP 0332 / V17. PROFIBUS from GSD version/GSD revision: GSD Revision 5. PROFINET from GSD version/GSD revision: V2.3. Installation type/mounting: Rail mounting: S7-1500 mounting rail. Supply voltage: Rated value (DC): 24 V. Permissible range, lower limit (DC): 19.2 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection. Input current: Current consumption, max: 75 mA; without load. Encoder supply: Number of outputs: 1; A common 24V encoder supply for both channels. 24 V encoder supply: 24 V: L+ (-0.8 V). Short-circuit protection. Output current, max.: 1 A; total current of all encoders/channels. Power: Power available from the backplane bus: 1.3 W. Power loss, typ.: 4 W. Digital inputs: Number of digital inputs: 6; 3 per channel. Digital inputs, parameterizable. Input characteristic curve in accordance with IEC 61131, type 3. Digital input functions, parameterizable: Gate start/stop. Capture. Synchronization. Freely usable digital input. Probe. Input voltage: Type of input voltage: DC. Rated value (DC): 24 V. For signal "0": -5 ... +5 V. For signal "1": +11 to +30V. Permissible voltage at input, min.: -30 V; -5 V continuous, -30 V brief reverse polarity protection. Permissible voltage at input, max.: 30 V. Input current: For signal "1", typ.: 2.5 Ma. Cable length: Shielded, max.: 1 000 m. Unshielded, max.: 600 m. Digital outputs: Type of digital output: Transistor. Number of digital outputs: 4; 2 per channel. Digital outputs, parameterizable. Short-circuit protection: electronic/thermal. Response threshold, typ.: 1 A. Limitation of inductive shutdown voltage to: L+ (-53 V). Controlling a digital input. Digital output functions, parameterizable: Switching tripped by comparison values. Freely usable digital output. Switching capacity of the outputs: With resistive load, max: 0.5 A; Per digital output. On lamp load, max: 5 W. Load resistance range: Lower limit: 48 Ω. Upper limit: 12 k Ω. Output voltage: Type of output voltage: DC. For signal "1", min.: 23.2 V; L+ (-0.8 V). Output current: For signal "1" rated value: 0.5 A; Per digital output. For signal "1" permissible range, max.: 0.6 A; Per digital output. For signal "1" minimum load current: 2 Ma. For signal "0" residual current, max.: 0.5 mA. Switching frequency: With resistive load, max: 10 kHz. With inductive load, max: 0.5 Hz; Acc. to IEC 60947-5-1, DC-13; observe derating curve. On lamp load, max: 10 Hz. Total current of the outputs: Current per module, max.: 2 A. Cable length: Shielded, max.: 1 000 m. Unshielded, max.: 600 m. Ambient temperature during operation: Horizontal installation, min: -30 °C. Horizontal installation, max: 60 °C; Please note derating for inductive loads. Vertical installation, min: -30 °C. Vertical installation, max: 40 °C; Please note derating for inductive loads. Altitude during operation relating to sea level: Installation altitude above sea level, max.: 5 000 m; restrictions for installation altitudes > 2000 m.
