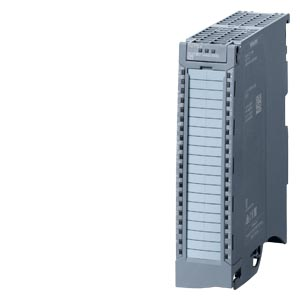

SIMATIC S7-1500 TM PTO 4 4 channels, max. 1 MHz

Specifications: Product type designation: TM PTO 4. HW functional status: FS02. Number of channels: 4; Axes. Product function: (I&M data): I&M0 to I&M3 and Isochronous mode. Width: 35 mm. Height: 147 mm. Depth: 129 mm. Engineering with: STEP 7 TIA Portal configurable/integrated from version: STEP 7 V14 or higher. STEP 7 configurable/integrated from version: V5.5 SP3 with GSD file. PROFINET from GSD version/GSD revision: GSDML V2.32. Installation type/mounting: Rail mounting: S7-1500 mounting rail. Supply voltage: Rated value (DC): 24 V. Permissible range, lower limit (DC): 19.2 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection. Input current: Current consumption, max: 70 mA; without load. Power: Power available from the backplane bus: 1.3 W. Power loss, typ.: 4 W. Digital inputs: Number of digital inputs: 12; 3 per channel, of which 1 DIQ. Digital inputs, parameterizable. Input characteristic curve in accordance with IEC 61131, type 3. Digital input functions, parameterizable: Synchronization. Probe. Drive ready. Input voltage: Type of input voltage: DC. Rated value (DC): 24 V. For signal "0": -5 ... +5 V. For signal "1": +11 to +30V. Permissible voltage at input, min.: -5 V. Permissible voltage at input, max.: 30 V. Input current: For signal "1", typ.: 2.5 Ma. Cable length: Shielded, max.: 1 000 m. Unshielded, max.: 600 m. Digital outputs: Number of digital outputs: 12; 3 per channel, of which 1 DIQ. Current-sinking: For DQn.0 and DQn.1 push-pull outputs. Current sourcing. Digital outputs, parameterizable. Short-circuit protection: electronic/thermal. Response threshold, typ.: 0.2 A for DQn.0 and DQn.1, 0.9 A for DIQn.2. Controlling a digital input. Switching capacity of the outputs: With resistive load, max: 0.1 A; 0.5 A for DIQn.2. On lamp load, max: 1 W; 5 W for DIQn.2. Load resistance range: Lower limit: 240 Ω; 48 ohms for DIQn.2. Upper limit: 12 k Ω. Output voltage: Type of output voltage: DC. For signal "1", min.: 23.2 V; L+ (-0.8 V), L+ (-1.3 V) for DIQn.2. Output current: For signal "1" rated value: 0.1 A; 0.5 A for DIQn.2. For signal "1" permissible range, max.: 0.12 A; 0.6 A for DIQn.2. For signal "1" minimum load current: 2 Ma. For signal "0" residual current, max.: 0.5 mA. Switching frequency: With resistive load, max: 1 kHz; For DIQn.2. With inductive load, max: 0.5 Hz; According to IEC 60947-5-1, DC-13, for DIQn.2. On lamp load, max: 10 Hz; For DIQn.2. For signal interface 24 V asymmetrical: 200 kHz; With DQn.0 and DQn.1. For signal interface RS 422 symmetrical: 1 MHz For signal interface TTL (5 V) asymmetrical: 200 kHz. Cable length: Shielded, max.: 600 m; Cable length, RS 422 / TTL Siemens Type 6FX2001-5: 125 kHz, 320 meters shielded, max.; 250 kHz, 160 meters shielded, max.; 500 kHz, 60 meters shielded, max.; 1 MHz, 32 meters shielded, max. 24 V (DQ n. x / DIQn.2): 10 kHz, 600 meters, shielded, max. 200 kHz, 50 meters shielded, max. Ambient temperature during operation: Horizontal installation, min: 0 °C. Horizontal installation, max: 60 °C; Observe derating. Vertical installation, min: 0 °C. Vertical installation, max: 40 °C; Observe derating. Altitude during operation relating to sea level: Installation altitude above sea level, max.: 5 000 m; restrictions for installation altitudes > 2000 m.
