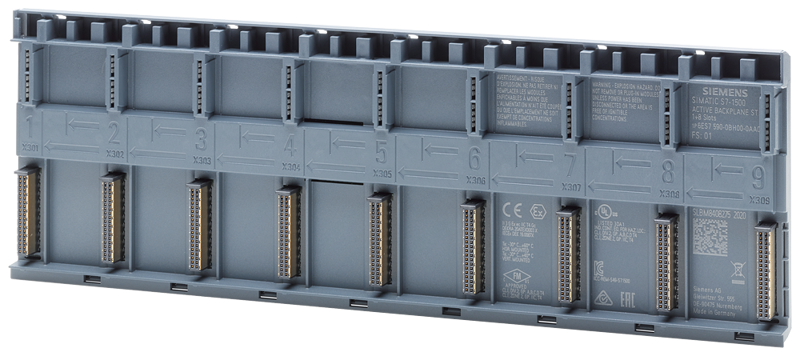

SIMATIC S7-1500 Active Backplane ST 1+8 Slot
SKU: 6ES7590-0BH00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC S7-1500 / ET 200MP active backplane bus with 8 slots for hot swapping S7-1500 I/O modules for use in the ET 200MP with IM 155-5 PN HF (from FW V4.4.1); S7-1500 mounting rail and slot covers must be bought separately.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
HW functional status: FS01.
Firmware version: V1.0.0.
Product function:
I&M data: I&M0 to I&M3.
Isochronous mode.
Prioritized startup.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V16 / V17.
STEP 7 configurable/integrated from version: V5.6 and higher.
PROFINET from GSD version/GSD revision: V2.35.
Power:
Power available from the backplane bus: 2 W.
Typical power loss: 2 W.
Hardware configuration (slots):
Grid size: 35 mm; Utilization of 25 mm-wide modules possible.
Number of slots: 9.
CPU, max: 1; for S7-1500H CPU with CPU firmware V3.1 or higher; interface modules up to V1.1.0 only (active backplane bus).
IM, max: 1.
PS, max: 8; Max. 2 PS per station.
IO/CM/CP/TM, max: 8.
F-IO, max: 8.
Number of single-width slots, max: 8.
Ambient temperature during operation:
Horizontal installation, min.: -30 °C.
Horizontal installation, max.: 60 °C.
Vertical installation, min.: -30 °C.
Vertical installation, max.: 40 °C.
Ambient temperature during storage/transportation:
Minimum: -40 °C.
Maximum: 70 °C.
Installation altitude above sea level, max: 5 000 m; Restrictions for installation altitudes > 2000 m.
Width: 294 mm.
Height: 99 mm.
Depth: 14 mm.
