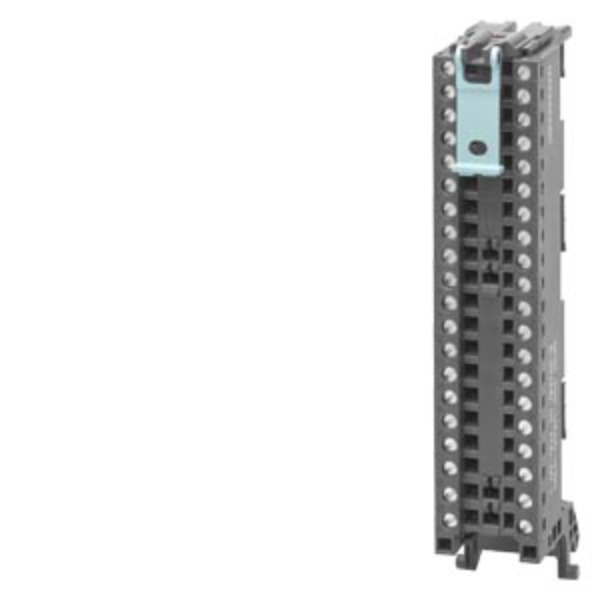

Siemens S7-1500 Front connectors, For 35 mm modules, Screw terminals
SKU: 6ES7592-1AM00-0XB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
This front connector enables reliable and serviceable wiring for S7-1500 signal modules.
It features screw terminals, potential bridges, and cable ties, making it ideal for structured installations where signal integrity, modular maintenance, and field accessibility are critical.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Front connector (screw-type).
Number of Poles: 40.
Compatible Module Width: 35 mm.
Included Accessories: 4 potential bridges, cable ties.
Connection Method: Screw terminals (single or dual conductor).
Wire Size Range: 0.25–1.5 mm² (AWG 24–16).
Stripped Length: 10–11 mm.
End Sleeve Type: DIN 46228 Form A/E.
Mounting Tool: 3–3.5 mm conical screwdriver.
Tightening Torque: 0.4–0.7 Nm.
Dimensions (W×H×D): 29.8 × 130.5 × 46 mm.
Weight: ~123 g.
Compliance & Classification:
Certifications: CE, UKCA, UL, RCM, ATEX, IECEx.
Hazardous Location Use: Approved.
eClass: 27-24-22-92.
ETIM Class: EC002584.
UNSPSC: 32-15-17-03.
