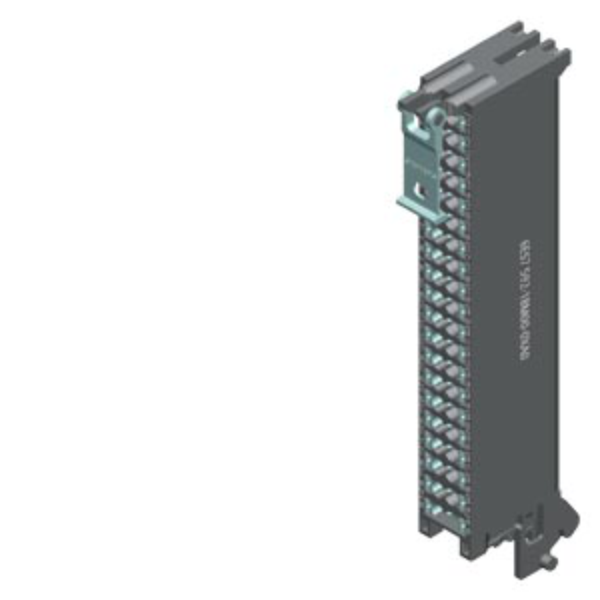

Siemens S7-1500 Front connectors, For 25 mm modules, Push-in terminal
SKU: 6ES7592-1BM00-0XA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
SIMATIC S7-1500 front connector is a push-in design with 40 poles for 25 mm wide modules and tiny CPUs, including a cable tie.
General Information:
The product type designation is front connector.
Buy currently uses Select Automation shop pricing and checkout.
connection method:
Connection I/O signals:
Connection method: Push-in terminal.
Number of lines per connection: 1; or max. 8x 2 conductors to 1.5 mm² (in total) in a shared end sleeve and max. 32x 0.75 mm² single core.
Conductor cross-section in mm²:
Connectable cable cross-sections for massive cables, min.: 0.25 mm².
Connectable cable cross-sections for massive cables, min.: 1.5 mm²; max. 32x 0.75 mm², 8x 1.5 mm².
Connectable cable cross-sections for flexible cables without end sleeve, min.: 0.25 mm².
Connectable cable cross-sections for flexible cables without end sleeve, max.: 1.5 mm²; max. 32x 0.75 mm², 8x 1.5 mm².
Connectable cable cross-sections for flexible cables with end sleeve, min.: 0.25 mm².
Connectable cable cross-sections for flexible cables with end sleeve, max.: 1.5 mm²; max. 32x 0.75 mm², 8x 1.5 mm².
Conductor cross-section acc. to AWG:
Connectable cable cross-sections for massive cables, min.: 24.
Connectable cable cross-sections for massive cables, min.: 16; max. 32x AWG 19, 8x AWG 16.
Connectable cable cross-sections for flexible cables without end sleeve, min.: 24.
Connectable cable cross-sections for flexible cables without end sleeve, max.: 16; max. 32x AWG 19, 8x AWG 16.
Connectable cable cross-sections for flexible cables with end sleeve, min.: 24.
Connectable cable cross-sections for flexible cables with end sleeve, max.: 16; max. 32x AWG 19, 8x AWG 16.
Wire end processing:
Stripped length of cables, min.: 8 mm.
Stripped length of cables, max.: 11 mm.
End sleeve acc. to DIN 46228 without plastic sleeve: Form A, 10 mm long.
End sleeve acc. to DIN 46228 with plastic sleeve: Form E, 8 mm and 10 mm long.
Mounting:
Tool: Screwdriver, conical design, 3 mm to 3.5 mm.
Dimensions:
Width: 19.8 mm.
Height: 130.5 mm.
Depth: 43 mm.
Weights:
Weight, approx.: 123 g.
