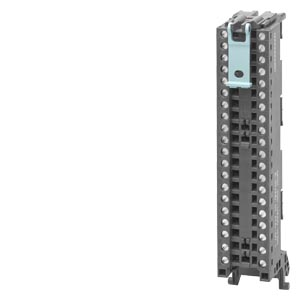

Siemens S7-1500 Front connectors, For 35 mm modules, Push-in terminal

General information: Product type designation: Front connector. Ambient conditions: Ambient temperature during operation: min.: -40 °C. max.: 80 °C. connection method: Connection I/O signals: Connection method: Push-in terminal. Number of lines per connection: 1; or combination of 2 conductors of up to 1.5 mm² (total) in a shared ferrule. Conductor cross-section in mm²: Connectable cable cross-sections for massive cables, min.: 0.25 mm². Connectable cable cross-sections for massive cables, min.: 1.5 mm². Connectable cable cross-sections for flexible cables without end sleeve, min.: 0.25 mm². Connectable cable cross-sections for flexible cables without end sleeve, max.: 1.5 mm². Connectable cable cross-sections for flexible cables with end sleeve, min.: 0.25 mm². Connectable cable cross-sections for flexible cables with end sleeve, max.: 1.5 mm². Conductor cross-section acc. to AWG: Connectable cable cross-sections for massive cables, min.: 24. Connectable cable cross-sections for massive cables, min.: 16. Connectable cable cross-sections for flexible cables without end sleeve, min.: 24. Connectable cable cross-sections for flexible cables without end sleeve, max.: 16. Connectable cable cross-sections for flexible cables with end sleeve, min.: 24. Connectable cable cross-sections for flexible cables with end sleeve, max.: 16. Wire end processing: Stripped length of cables, min.: 8 mm. Stripped length of cables, max.: 11 mm. End sleeve acc. to DIN 46228 without plastic sleeve: Form A, 10 mm long. End sleeve acc. to DIN 46228 with plastic sleeve: Form E, 8 mm and 10 mm long. Mounting: Tool: Screwdriver, conical design, 3 mm to 3.5 mm. Dimensions: Width: 29.8 mm. Height: 130.5 mm. Depth: 46 mm. Weights: Weight, approx.: 123 g.
