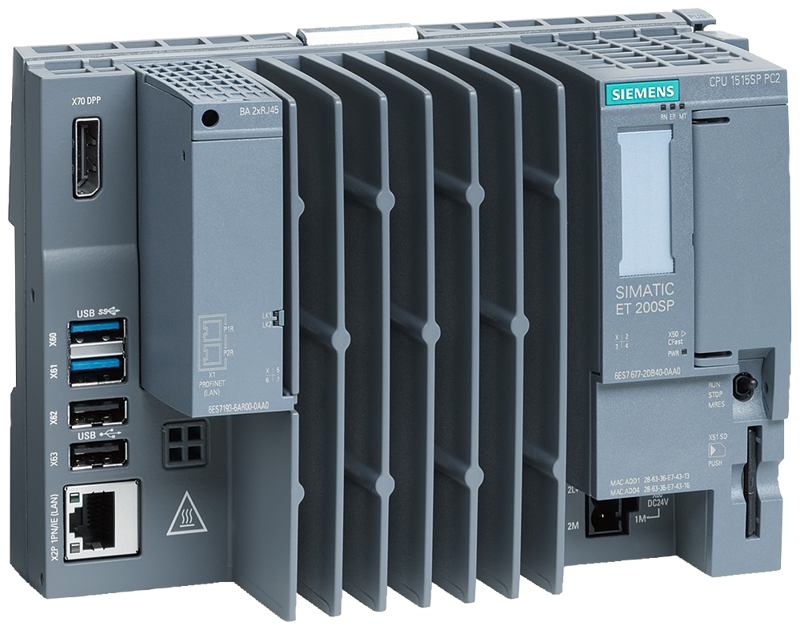

SIMATIC ET 200SP CPU 1515SP PC2 HMI 512PT, 8 GB, 64-bit
SKU: 6ES7677-2DB42-0GL0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
With Windows 10 IoT Enterprise LTSC 2019 64-bit, S7-1500 Software Controller CPU 1505SP V2x and WinCC Runtime Advanced V17 preinstalled, and 512 Power Tags license, the SIMATIC ET 200SP Open Controller has a CPU 1515SP PC2 + HMI 512PT, 8 GB RAM (basic device 6ES7677-2DB40-0AA0), and 128 GB CFAST.
It also has two USB 3.0, two USB 2.0, and one DisplayPort interface.
The documentation for the device is available.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection.
Input current:
Current consumption (rated value): 1.8 A; Full processor load, incl. ET 200SP modules and using USB.
Current consumption (in no-load operation), typ.: 0.5 A.
Current consumption, max.: 2.9 A.
I²t: 0.426 A²·s; with starting current inrush.
Power:
Active power input, max.: 43 W; incl. ET 200SP modules and using USB.
Infeed power to the backplane bus: 8.75 W.
Power loss, typ.: 15 W; without ET 200SP modules and without using USB.
Memory:
Type of memory: DDR3L.
Main memory: 8 GB RAM.
CFAST memory card: 128 GB flash memory.
Integrated work memory:
1 Mbyte (for program).
5 Mbyte (for data).
20 Mbyte (for CPU function library of CPU Runtime).
Integrated load memory:
320 Mbyte (on PC mass storage).
Backup:
With UPS: all memory areas declared retentive.
With non-volatile memory.
Interfaces:
Number of industrial Ethernet interfaces: 2.
Number of PROFINET interfaces: 1.
Number of PROFIBUS interfaces: 1.
Number of RS 485 interfaces: 1; Via CM DP module.
Number of USB interfaces: 4; 2x USB 2.0, 2x USB 3.0 on front side.
Number of SD card slots: 1.
Width: 160 mm.
Height: 117 mm.
Depth: 75 mm.
