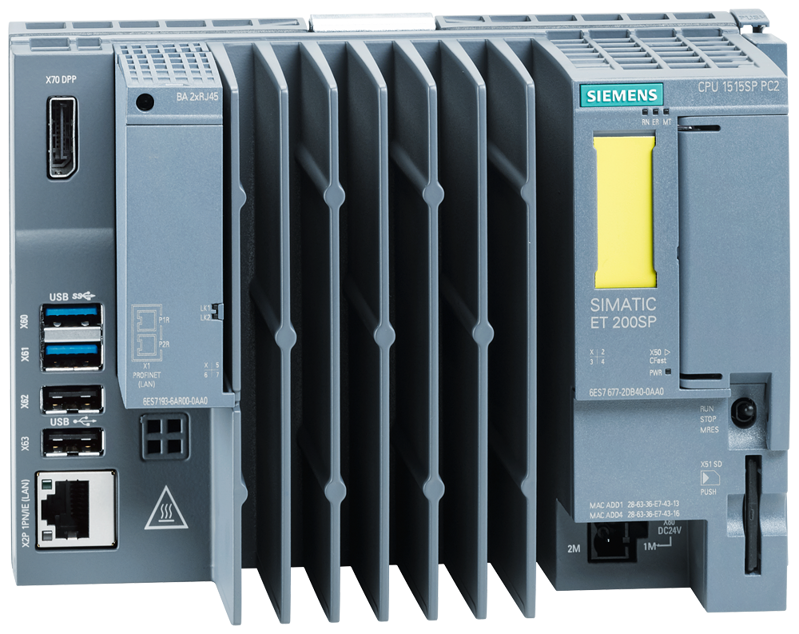

SIMATIC ET 200SP CPU 1515SP PC2 F 8 GB, 64-bit

Specifications: Supply voltage: Rated value (DC): 24 V. Permissible range, lower limit (DC): 19.2 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection. Input current: Current consumption (rated value): 1.8 A; Full processor load, incl. ET 200SP modules and using USB. Current consumption (in no-load operation), typ.: 0.5 A. Current consumption, max.: 2.9 A. I²t: 0.426 A²·s; with starting current inrush. Power: Active power input, max.: 55 W; incl. ET 200SP modules and using USB. Infeed power to the backplane bus: 8.75 W. Power loss, typ.: 15 W; without ET 200SP modules and without using USB. Memory: Type of memory: DDR3L. Main memory: 8 GB RAM. CFAST memory card: 128 GB flash memory. Integrated work memory: 1.5 Mbyte (for program). 5 Mbyte (for data). 20 Mbyte (for CPU function library of CPU Runtime). Integrated load memory: 320 Mbyte (on PC mass storage). Backup: With UPS: all memory areas declared retentive. With non-volatile memory. Interfaces: Number of industrial Ethernet interfaces: 2. Number of PROFINET interfaces: 1. Number of PROFIBUS interfaces: 1. Number of RS 485 interfaces: 1; Via CM DP module. Number of USB interfaces: 4; 2x USB 2.0, 2x USB 3.0 on front side. Number of SD card slots: 1. Width: 160 mm. Height: 117 mm. Depth: 75 mm.
