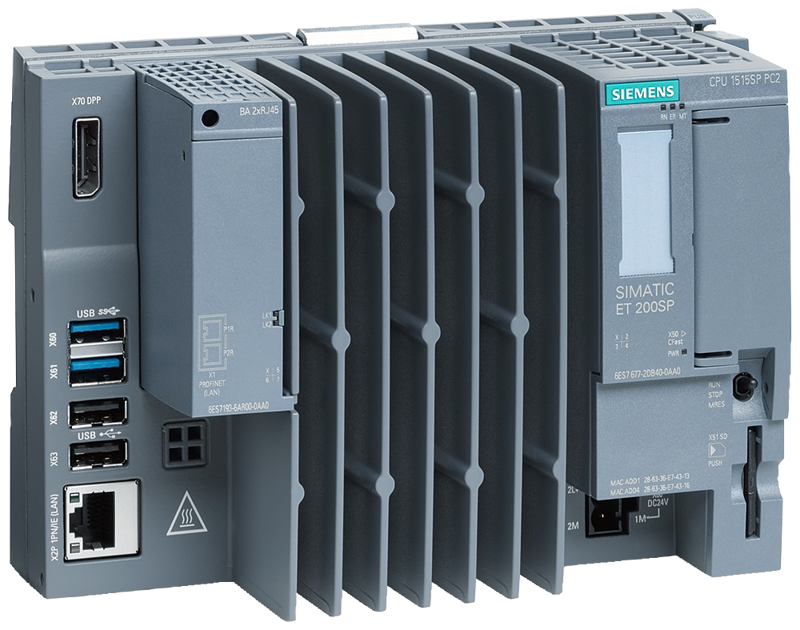

SIMATIC ET 200SP CPU 1515SP PC2 T HMI 512PT, 8 GB, 64-bit
SKU: 6ES7677-2VB42-0GL0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP Open Controller, CPU 1515SP PC2 T + HMI 512PT, 8 GB RAM (basic device 6ES7677-2DB40-0AA0), 128 GB CFAST, Windows 10 IoT Enterprise LTSC 2019 64-bit, S7-1500 Software Controller, CPU 1505SP T V2x, and WinCC Runtime Advanced V17 preinstalled, with 512 Power Tags license; interfaces: 1x slot CFAST, 1x slot SD/MMC, 1x connection for ET 200SP Bus Adapter PROFINET, 1x 10/100/1000 Mbps Ethernet, 2x USB 3.0, 2x USB 2.0, 1x DisplayPort.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection.
Input current:
Current consumption (rated value): 1.8 A; Full processor load, incl. ET 200SP modules and using USB.
Current consumption (in no-load operation), typ.: 0.5 A.
Current consumption, max.: 2.9 A.
I²t: 0.426 A²·s; with starting current inrush.
Power:
Active power input, max.: 43 W; incl. ET 200SP modules and using USB.
Infeed power to the backplane bus: 8.75 W.
Power loss, typ.: 16 W.
Memory:
Type of memory: DDR3L.
Main memory: 8 GB RAM.
CFAST memory card: 128 GB flash memory.
Integrated work memory:
1 Mbyte (for program).
5 Mbyte (for data).
20 Mbyte (for CPU function library of CPU Runtime).
Integrated load memory:
320 Mbyte (on PC mass storage).
Backup:
With UPS: all memory areas declared retentive.
With non-volatile memory.
Interfaces:
Number of industrial Ethernet interfaces: 2.
Number of PROFINET interfaces: 1.
Number of PROFIBUS interfaces: 1.
Number of RS 485 interfaces: 1; Via CM DP module.
Number of USB interfaces: 4; 2x USB 2.0, 2x USB 3.0 on front side.
Number of SD card slots: 1.
Width: 160 mm.
Height: 117 mm.
Depth: 75 mm.
